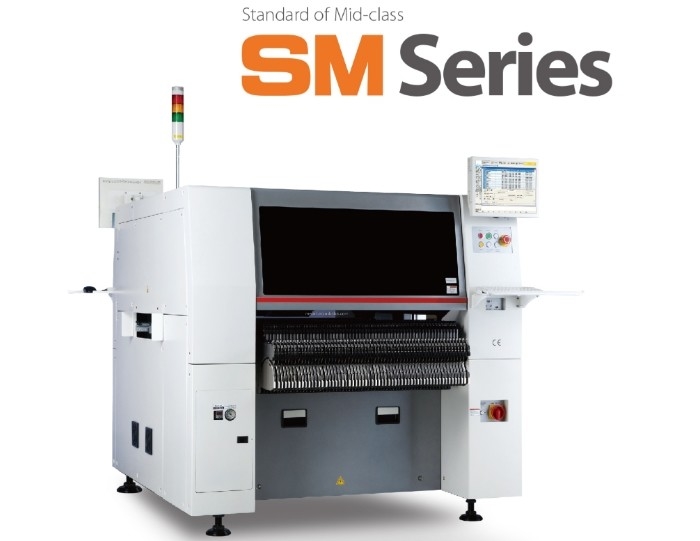

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine
SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine

Large Image :  SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine Get Best Price

Product Details:

Place of Origin: Korea
Brand Name: Hanwha
Model Number: SM482

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $42000~$46000
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Number Of Spindles: 10 Spindles X2 Gantry Placement Speed: 30,000CPH(Optimum)
Placement Accuracy: ±40μm@μ+3σ Component Size: 0402(01005)~ 42mm(H 15mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm)
Board Dimension: 50(L)x40(W)-460 (L) X400(W) Model: SM482Plus
Feeder Capacity(8mmbasis):: 120ea / 112ea(Docking Cart) Power:: AC200 / 208/220/240/380 / 415V (50 / 60HZ, 3Phase)
Air Consumption: 0.5-0.7MPa (5.0-7.0kgf / Cm2)160NL/min Mass(Kg): Approx. 1600Kg
Equipment Size (mm): 1,650 (L) X 1,680 (D) X 1,530 (H) Whatsapp: +8613728632793
Skype: Joaquin Xie Wechat: Joaquin15
Web: Https://meraif.en.alibaba.com/

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup



SMT pick and place machine Technical Parameters :

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 0

Product Details:

SM481
Fast Flexible Placer

The SM481PLUS can perform high-speed placement of chips at 40,000CPH and QFPs at one per 1.1 seconds, respectively (each at optimum speed) by applying the on-the-fly recognition technology patented by Hanwha, which enables component placement at the highest speed among all medium speed component placers. With one-gantry structure having a high-speed piano head with 10 nozzles, the machine can be operated with minimum manpower using one side of the machine. Being able to produce long boards with lengths of up to 1,500mm, the machine boasts of its applicability to the largest PCBs among SM series component placers.

Production speed and component coverage suitable for general-purpose high-speed placement

General-purpose high-speed machine among SM series component
placers, which applies a high-speed piano head with 10 nozzles and an
option for an upward camera.

1,500mm long board

Two-staged placement using an extended conveyor allows production of long boards with lengths of up to 1,500mm.

One-side operation

With single gantry and single lane structures optimized for machine operation using only one side of the machine, the production area and manpower can be utilized efficiently.

SMT pick and place machine Picture Show:

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 1SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 0SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 3SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 4SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 5SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 6SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 7SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 8SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 9SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 10SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 11SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 12

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 13SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 14SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 15



SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 16

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 17SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 18

EXHIBITION:

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 19SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 20

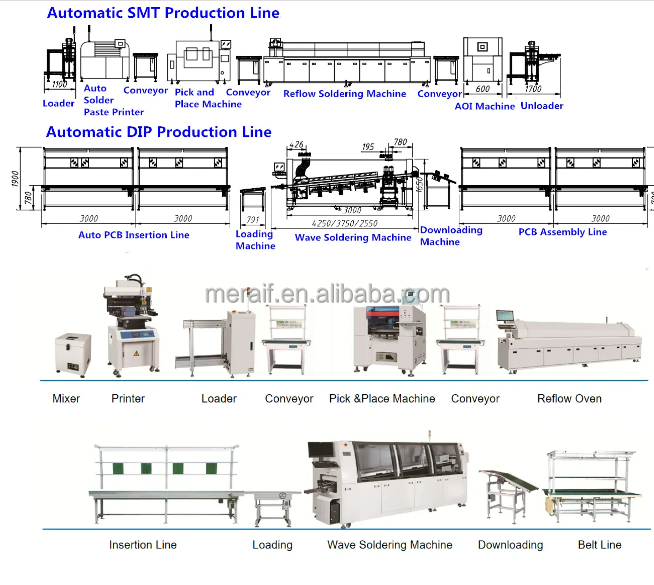

SMT LINE:

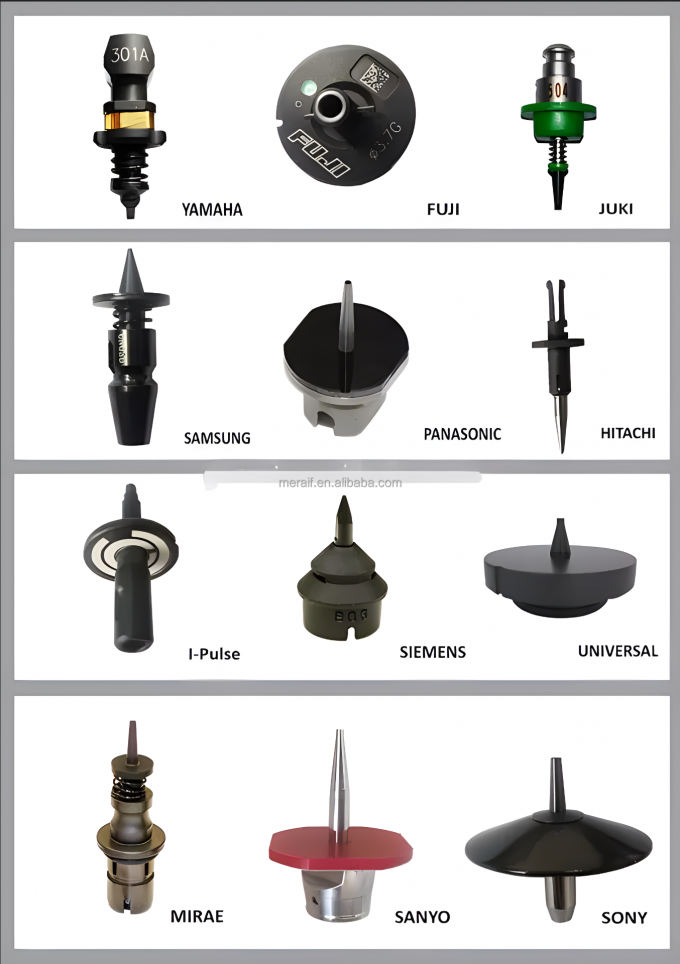

SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 21SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 22SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 23SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 24SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 25SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 26SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 27SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 28SMT SAMSUNG Hanwha SM481 SM482 Plus Pick And Place Machine 29
