SMT machine TCM-X300 Pick and Place Machine FOR Hitachi
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | Used | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | SMT Machine TCM-X300 |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | RS-1 | Applicable Components:: | 0402,Minimum 01005-38*38*8.5m |
| Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
| Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
| Lead Time: | 7-30days | Port: | Shenzhen |
SMT machine TCM-X300 Pick and Place Machine FOR Hitachi
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
SMT machine TCM-X300 details:
- Head: 12 Heads
- PCB:560 mm * 460 mm
- Equipment weight: 4800KG
Head: 12 Heads
Sewing speed (Best condition): 0.075 second
PCB dimensions: max. 560 mm * 460 mm, 50 mm * 50 mm
: 0201 - 32/32 mm QFP SOP, altitude 6 mm or less 0
Charge quantity: 144
Trend: Left Right (Right Left: Option)
Air: 4.5 - 6.9 Kgf / cm 2
Power source and power source: 200 V - 220 V 3 PH, 50/60 Hz, 16 KVA, Source: 100 L / min
Equipment dimensions: L 6000 mm, W 2247 mm, H 1695 mm
Equipment weight: 4800 kg
Maker: Hitachi (Sanyo)Target board dimensions (mm) 50 × 50 to 330 × 250 t = 0.5 to 5.0 (TCM-X 110 J)
50 × 50 to 330 × 250 t = 0.5 to 5.0 (TCM-X 110 M)
50 × 50 to 560 × 460 t = 0.5 to 5.0 (TCM-X 300 S)
(The board carrying range is 610 x 460 mm.)
Target packaging 8 mm (paper tape) 8 - 44 mm (embossed tape), bulk
Number of mounted feeders (8 mm tape) (book) 60 (30 × 2) (TCM - X 110 J)
120 (30 × 4) (TCM-X 110 M)72 (36 × 2) (TCM-X 300 S)
Power source used 3 phase AC 200 V ± 20 V 50/60 Hz Approx 14 kVA
Air pressure used (MPa) Dry clean air 0.45 to 0.69
Maximum wearing time (sec / piece) (optimum condition) 0.075
(Option 0.072)
Equipment dimensions (mm) Width x Length x Height
(Tower lamp height) 2,400 × 1,953 × 1,695 (2, 100) (TCM-X 110 J)
4,500 × 1,953 × 1,695 (2, 100) (TCM-X 110 M)
3, 130 × 2, 223 × 1, 695 (2, 100) (TCM-X 300 S)
Mass (kg) Approximately 3,400 (TCM - X 110 J) / approximately 3,950 (TCM - X 110 M)
About 4,000 (TCM-X 300 S)Option Installed Coordinate Teaching Parts Library Teaching Barcode
Reel Check Barcode Model Switching BGA,
CSP Black Light Board Recognition Special Lighting

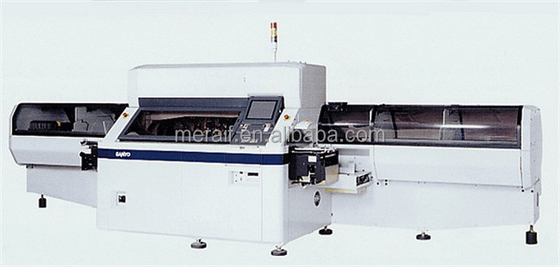

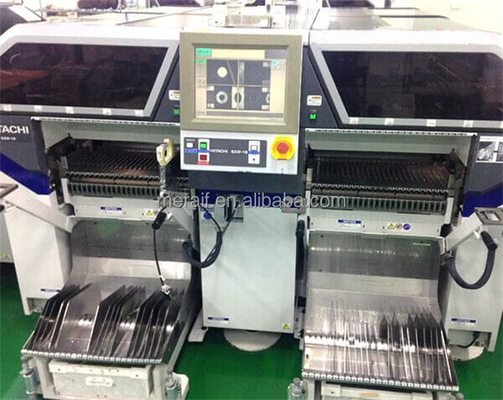

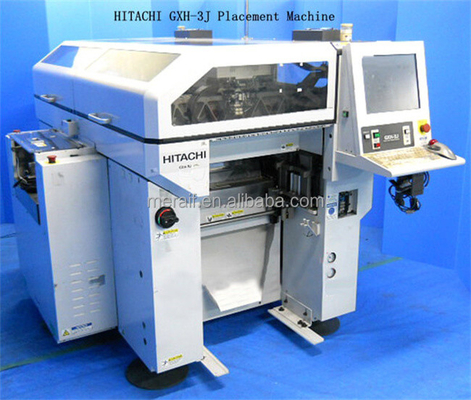

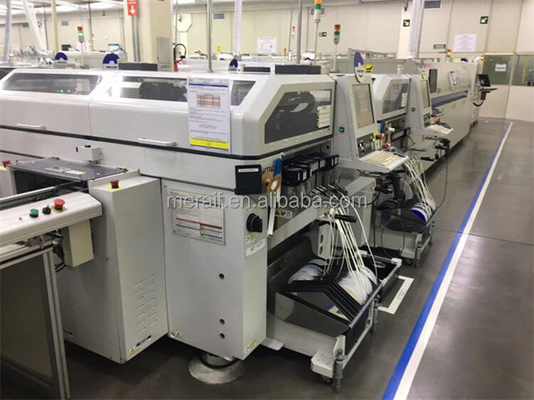

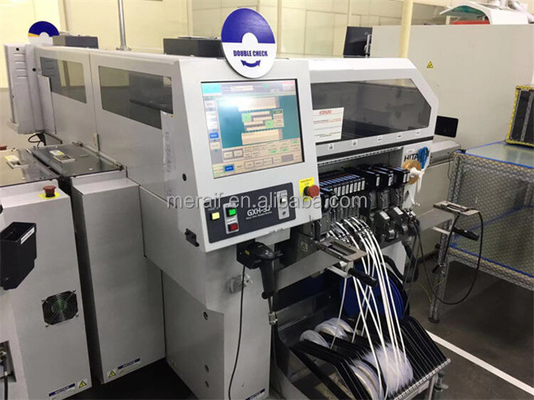

SMT machine TCM-X300 picture show:
Smt machine parts we can support you as follow:
Anything please feel free contact
Contact Details
Shenzhen Phaeton Electric Co., Ltd.
Contact Person: Ms. Joy Liang
Tel: +8613424013606
Send your inquiry directly to us
More SMT pick and place machine
-
EDI pure water making machine for sale with high quality good price reverse osmosis machine for underground water purification
-

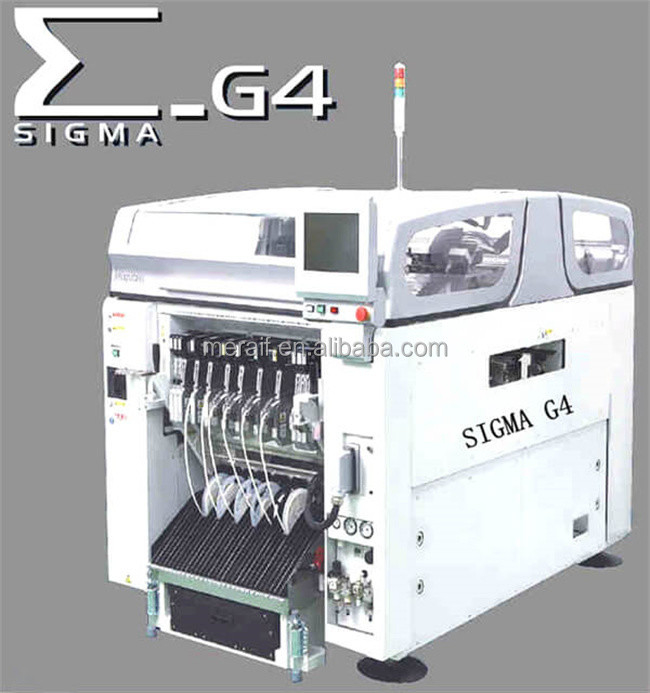

Hitachi SIGMA G4 Pick and Place Machine SMT chip mounter
-
