GXH-3J Pick and Place Machine for Hitachi

GXH-3J Pick and Place Machine for Hitachi

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

GXH-3J Pick and Place Machine GXH-3J Pick and Place Machinedetails:

• Mounting Speed: 12000CPH.
• components ranging: 0201(0603mm)
• Board Dimensions 460 X 460mm
• Four placement heads have up to 12 nozzles each
• A placement system with the ludicrous placement rate of   12000CPH.
  and flexibility to place components ranging from 0201(0603mm) chip to 100x26mm connector.
  Two independent work cells (stages) allow simultaneous assembly of two boards.
  All X and Y axes are operated by linear motors.
  Each Y axis has two motors for enhanced stability and repeatibility.
  Four placement heads have up to 12 nozzles each.
  On-the-fly recognition of all components.
  A line sensor on each head checks for component presence, orientation, and correct thickness.
  Unique board conveyor system moves both rails for optimum board postioning during production.
  No more "fixed rails"!!!
  An option exists for the placement of 01005 (0402mm) chip components.
  Board Dimensions
  50 X 50 to 460 X 460mm
  (610 X 460 optional)
  Thickness: 0.5 to 5.0mm
  Component Package: 8mm (paper)
  8 to 72mm:(embossed)
  Tray, Stick
  Component: Sizes
  High speed head 0603 (0201) to 44 X 44mm 0402 (01005) (option)
  Multi-function head 3216(1206) to 55 X 55mm 100 X 26mm (Connector)
  Mounting Accuracy: 50 μm (3σ)

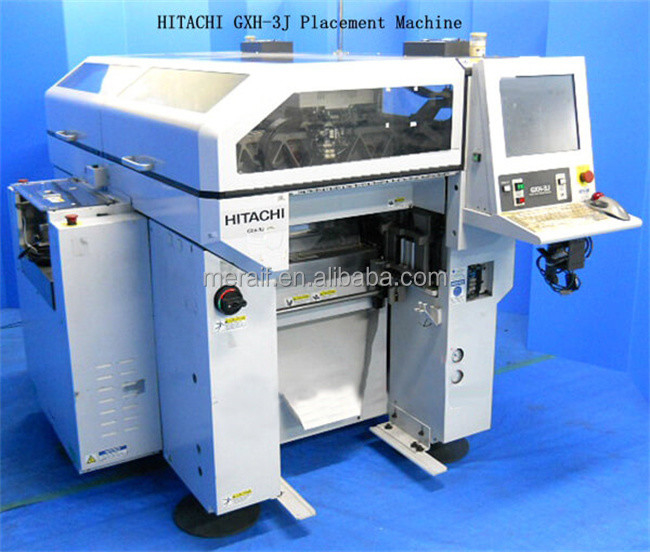

GXH-3J Pick and Place Machine picture show:

Smt machine parts we can support you as follow:

Anything please feel free contact
