Product Details:
Payment & Shipping Terms:
|
Condition: | Used | Weight (KG): | 1000 |
---|---|---|---|
Showroom Location: | None | Video Outgoing-inspection: | Provided |
Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
Warranty Of Core Components: | 1 Year | Core Components: | PLC |
Warranty: | 1 Year | Product Name: | Pick And Place Machine YS24X |
Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
Model Number:: | YS100 | Applicable Components:: | 0402~5050 |
Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
Lead Time: | 7-30days | Port: | Shenzhen |
YAMAHA SMT MOUNTER Ys100 Yamaha YS100 LED automatic Pick and Place Machine chip and IC shooting
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
YAMAHA SMT MOUNTER Ys100 Specification
Thanks to a high precision single placement beam that carries eight independent Z-servo controlled heads, the YS100 provides a perfect balance between chip and IC shooting. It is available in two versions: one with a Flying Nozzle Change (FNC) head for when many nozzle changes are needed and high output is important, the other with a Super Fine (SF) head for use with a wider component range including QFPs, connectors and tall components.
With placement rates up to 19.6k components per hour, the YS100 is fast. Placement accuracy is 30 microns for ICs. It handles a wide range of components from 0.4x0.2 mm (01005) to large connectors (100x45 mm), fine-pitch and components up to 15 mm tall. The YS100 holds up to 126 tape feeding positions.
Main benefits
The standard YS100 comes with software and hardware features to improve product quality, increase production efficiency, shorten NPI and changeover times and reduces maintenance, including:
Intelligent electrical feeders
Z-Servo controlled placement heads for accurate stress-free component mounting
Automatic board width and thickness adjustment for fast changeover
Automatic nozzle cleaning station
Automatic temperature feedback to compensate for temperature variations
Fiducial recovery function that eliminates the need to remove and clean the PCB
Feeder indicators that facilitate easy setup and reduce feeder setup
Double board support system for reducing board transfer time
Tape cutters
High-speed mounting capacity handling
25,000CPH(0.14sec/CHIP Equivalent : optimum condition)
+/-50μm(CHIP),
+/-30μm(QFP)mounting
absolute accuracy in full time operation
Handles a wide range of components from 0402 chips to W45xL100mm or less components and with long connectors
Capable of handling 15mm height components
Applicable to large size PCB(L510mm x W460mm)
Built-in tape cutter available as an option
Conformity with both Machinery directive and EMC directive
We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine

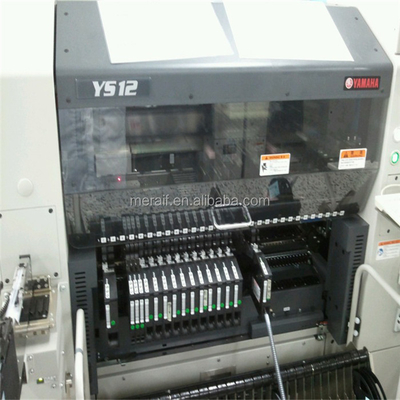

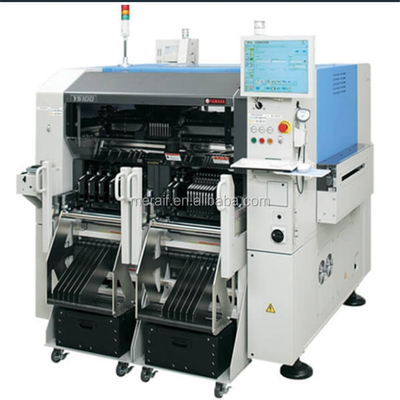

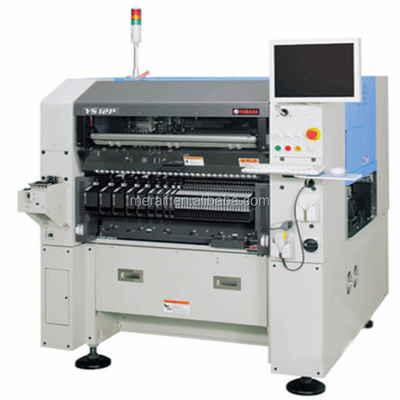

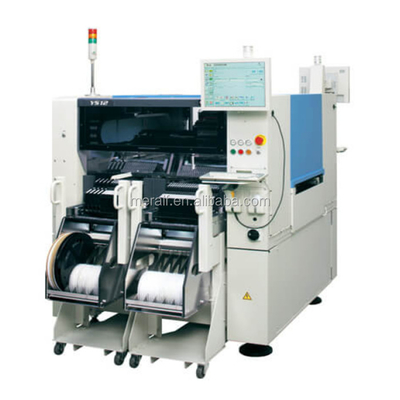

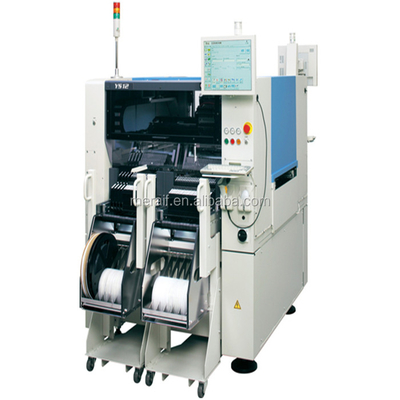

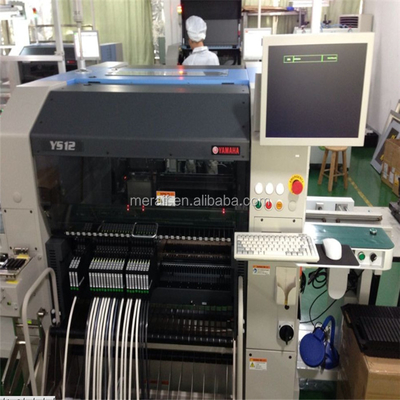

YAMAHA SMT MOUNTER Ys100 picture show:
Contact Person: Ms. Joy Liang
Tel: +8613424013606
