Warranty: | 1 Year | Product Name: | Yamaha Chip Mounter YG100 |
Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
Lead Time: | 7-30days | Port: | Shenzhen |
electronic solution provider SMT machine line High Speed used pick and place machine Yamaha Chip Mounter YG100
whatsapp:+8613424013606,skype :sensenhenhao
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
1. YAMAHA YG100 Placement Machine's advantages:
Mounting range from 01005 (Inch) micro-components to 45mm components.
Corresponding to the large substrate size L510xW440mm.
96 kinds of large component varieties.
Patch speed: 24,000 CPH (0.15 seconds/CHIP)
Mounting accuracy: (μ+3σ)±0.03mm/CHIP
Repeatability (3σ): ±0.03mm/CHIP
Mounting PCB Size: L50×W50mm~L510×W440mm
Component Types Belt Packaging: 120 types (converted to 8mm tape)
2. YAMAHA YG100 Placement Machine's parameters:
SMD Components: 0402(MM)-45MMX45MM Components SOP SOJ PLCC QFP BGA
SMD components can be placed 100 kinds (8MM)
Mounter size: L1650XW1562X1470
Yamaha YG100 specification and details as following:
1) Board size: M-Type: L460xW330 ~ L50xW50mm/t = 0.4 ~ 3.0mmL-Type:
L460xW440 ~ L50xW50mm/t = 0.4 ~ 3.0mm * sATS use: L460xW440 ~ L50xW50mm
2) Mounting speed: Chip: 0.15 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories 3)
IPC9850 conditions: 17700CPH, Chip: 0.20 seconds / accessories
4) Mounting accuracy: Chip: ± 0.05mm (3σ) / QFP: ± 0.05mm (3σ)
5) Mounting angle: (0.01±180° units)
6) Supported components: 0402 to SOP, SOJ, 84-pin PLCC, 0.5mm pitch QFPBGA,
CSP31mm, 100mm connector, IC socket.
7) Equipment Parts Height: 15mm
8) Part identification methods: multi-angle illumination digital multi-camera system (34 pixels),
multi-angle lighting good vision system (79 pixels).
9) Operation Software: YGOS (FullLine Mode, OnLineHelp, rich accessories and internal organs)
10) Optimization Software: Basic Services (Head and feeder Numbers,
Automatically Specified by the Installer)
11) Remote Control Software: Select (OnLine and OffLine Functions Available
12) Communication port: (Ethernet has Lan&RS232C)
13) Safety device: Head collision protection device in two modes: SoftLimit and HardLimit.
The CoverInterlock switch is used for head and collision prevention.
14) Power supply: 3-phase AC 416~200V, V± 10%, 50/60Hz, 4.8kVA
15) Air supply: 5.5kg/ (DryAir)/140/min
16) Size and Weight: 1,650(L)x1,562(W)x1,850(H)mm
17) Weight: 1,630kg

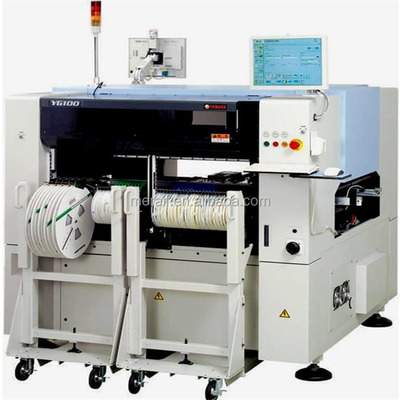

Yamaha Chip Mounter YG100 picture show
