2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter

2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter

2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter
2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter

Large Image :  2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Pick and Place Machine
Model Number: RS-1 CHIP MOUNTER

Payment & Shipping Terms:

Price: $46,000.00 - $48,000.00/pieces
Packaging Details: pick and place machine packing with vacuum wooden carton
Supply Ability: 1000000 Piece/Pieces per Month pick and place machine
Detailed Product Description
Condition: Used Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: Pick And Place Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: RS-1 Applicable Components:: 0402,Minimum 01005-38*38*8.5m
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 0

JUKI has launched its new High-speed SMT Pick and Place Machine,Equipped with a newly developed parallel 8 nozzle head, the JUKI SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 70%. The JUKI Pick and Place Machine is robotic assembly machine for mounting electronic components on a "PCB" in the printed board mounting process. In addition to increasing the number of components mounted per cycle from six to eight, JUKI Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height.



Main Features of SMT Modular Surface mounter

No head replacement, newly developed "Parallel 8 nozzle head" with auto-height component recognition sensor



Automatically adjust the component recognition sensor of the mounter head from 1 to 25 mm in 5 stages according to the PCB requirements. High productivity is achieved without replacing the placement head, even for parts with different heights, from very small parts to large parts.
High placement capacity of 40,000 CPH
The distance between the pickup and placement positions is shortened by adopting the new SMT Pick and Place Machine RF series electric feeder.
Extensive component compatibility
Components from 0.2 mm × 0.1 mm to 74 mm square, 50 mm × 150 mm, and the height of parts up to 25 mm can be mounted. Component range and placement speed have been improved by changing the image recognition to four-part simultaneous recognition and using high-speed motors on the ? (theta) axis of the nozzle. In addition, we adopted a new electric feeder that is smaller, lighter, and thinner. The feeder capacity has been increased to 112 per RS-1 to improve capability of a single machine solution.
Implementation of smart mounting process.

2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 1

Specifications
SMT Modular Surface mounter
Board size
50×50mm650×370mmSingle clamping?
Component height
25mm
Component size
0201 74mm/50×150mm
Placement accuracy
Placement accuracy
Feeder inputs
max.112?Using RF feeders
Placement speed
Optimum 42,000CPH
Conveyor specification
standard

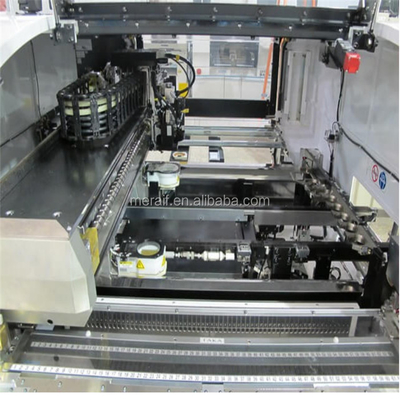

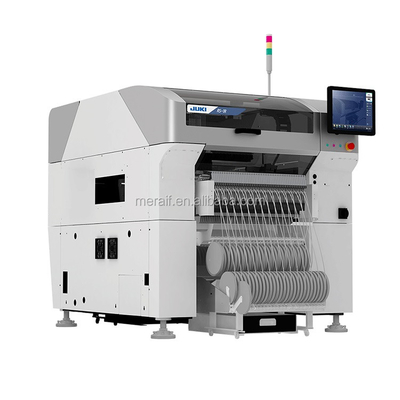

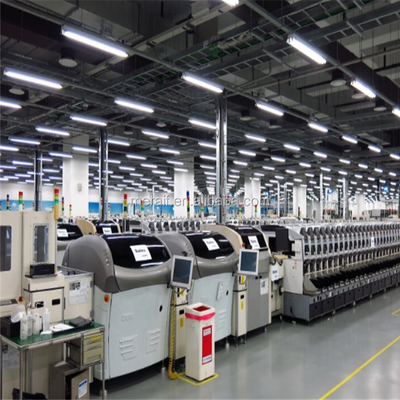

Pick and Place Machine picture show:

2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 22018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 32018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 42018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 52018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 62018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 72018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 82018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 9

Smt machine parts we can support you as follow:



2018year SMT Pick and Place Machine JUKI RS-1 in LED Lighting Production Line SMD Led Smt Machines juki RS-1 Chip Mounter 10
