SMT Yamaha YSM10 pick and place machine original used in stock

SMT Yamaha YSM10 pick and place machine original used in stock

SMT Yamaha YSM10 pick and place machine original used in stock
SMT Yamaha YSM10 pick and place machine original used in stock SMT Yamaha YSM10 pick and place machine original used in stock SMT Yamaha YSM10 pick and place machine original used in stock SMT Yamaha YSM10 pick and place machine original used in stock SMT Yamaha YSM10 pick and place machine original used in stock SMT Yamaha YSM10 pick and place machine original used in stock

Large Image :  SMT Yamaha YSM10 pick and place machine original used in stock Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: SMD Chip Mounter Machine
Model Number: YSM10 pick and place machine

Payment & Shipping Terms:

Price: $60,000.00 - $1,100,000.00/pieces
Packaging Details: YSM10 pick and place machine
Supply Ability: 1000000 Piece/Pieces per Month YSM10 pick and place machine
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: YSM10 Pick And Place Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

SMT Yamaha YSM10 pick and place machine original used in stock

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



YSM10 pick and place machine Specification:

Basic Specifications

Model

YSM10

Applicable PCB Dimensions

L 510 x W 460mm - L 50 x W 50mm
* Option: Up to L610 mm available

Mounting Capacity
(The Company's optimum conditions)

HM Head (10 Nozzle) Spec.

46,000CPH

HM5 Head (5 Nozzle) Spec.

31,000CPH

Mounting Accuracy

In the Company's optimum conditions
(standard material used for evaluation)
±0.035 mm (±0.025 mm) Cpk1.0 (3)

Applicable Components

03015- W 55mm x L 100mm(divided recognition for over W 45mm), H: 15mm or less

*Multi camera requirement (optional) for components over 6.5mm in height, or over 12mm square in size



Number of Component Types

Setting Plate

Max 96 types (8 mm width tape feeder conversion)

Tray

15 types (sATS15 equipment, Max, JEDEC)

Power Supply

3-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz

Air Supply

0.45 MPa or more, clean and dry state

External Dimensions (excluding protrusions)

L 1,254 x W 1,440 x H 1,445 mm

Weight

1,270kg

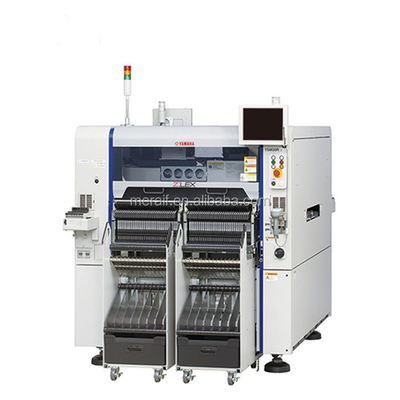

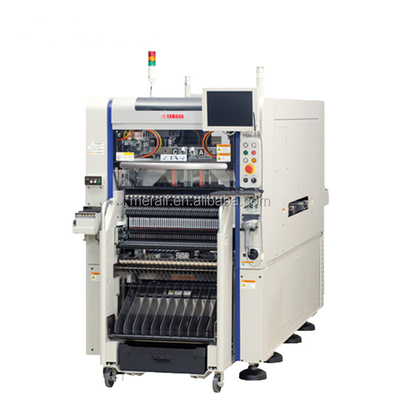

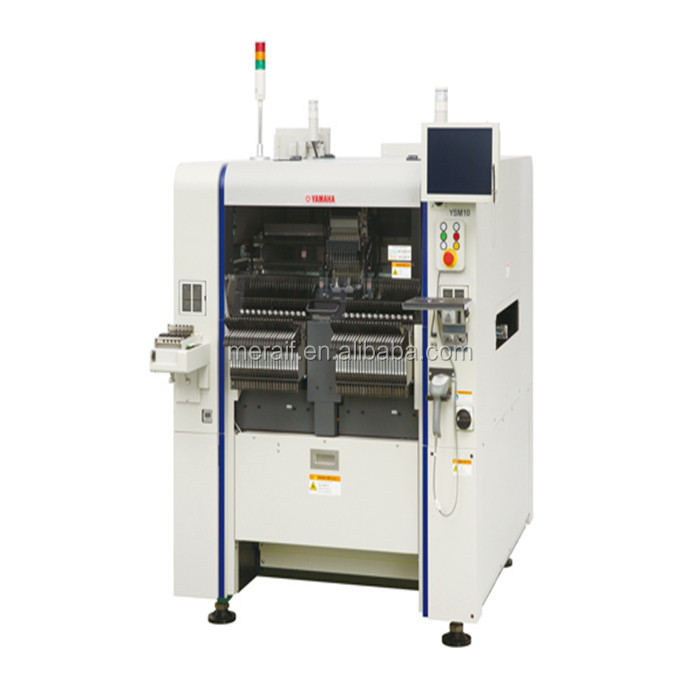

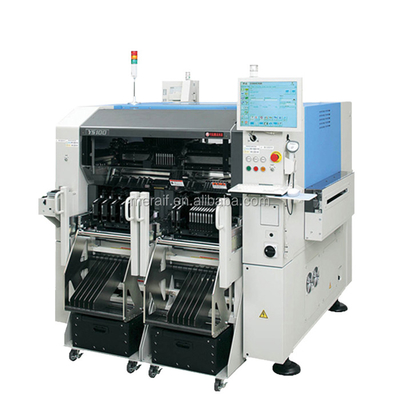

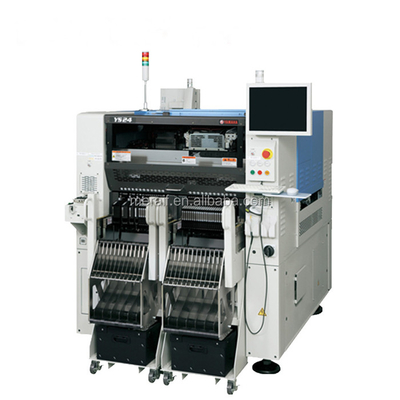

YSM10 pick and place machine  picture show

SMT Yamaha YSM10 pick and place machine original used in stock 0

SMT Yamaha YSM10 pick and place machine original used in stock 1SMT Yamaha YSM10 pick and place machine original used in stock 2SMT Yamaha YSM10 pick and place machine original used in stock 3SMT Yamaha YSM10 pick and place machine original used in stock 4SMT Yamaha YSM10 pick and place machine original used in stock 5

SMT Yamaha YSM10 pick and place machine original used in stock 6

SMT Yamaha YSM10 pick and place machine original used in stock 7SMT Yamaha YSM10 pick and place machine original used in stock 8
