HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter

HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter

HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter
HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter

Large Image :  HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Multi-Functional chip mounter
Model Number: HANWHA DECAN F2 smt chip mounter

Payment & Shipping Terms:

Price: $60,000.00 - $1,100,000.00/pieces
Packaging Details: HANWHA DECAN F2 smt chip mounter
Supply Ability: 1000000 Piece/Pieces per Month HANWHA DECAN F2 smt chip mounter
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: HANWHA DECAN F2 Smt Chip Mounter
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

Hanwha SM482 Plus Multi-Functional chip mounter machine SMT Placer

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

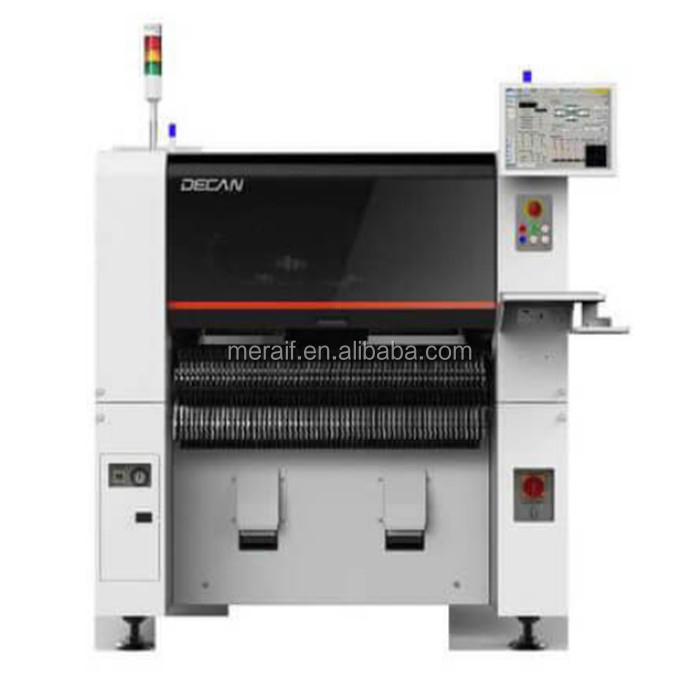

HANWHA DECAN F2 Advanced Chip shooter
 Speed : 80,000 CPH (Optimum)
 Structure : 2 Gantry x 10 Spindles/Head
Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
                  ±30μm Cpk≥1.0 (IC)
Parts Size : 0402~55mm (H15mm)
PCB Size : L510xW460mm (Standard)
                  L1,200xW460mm (Option)
Wide Part Handling Capability
Various PCB Transfer Systems
Verified Production History Management Solution
High Speed Placement

Optimizing PCB transportation paths for productivity improvement
Modular Conveyors
>An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.
>PCB supply time is shortened as a result of high-speed shuttle conveyor operation.

Minimized head path for improved equipment speed
Twin Servo Control
> Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head
>Minimized head movement path through recognizing parts during transportation following parts installation
>10-spindle head with individually operating Z axes

[HIGH RELIABILITY]
Placement Accuracy: ±40um (0402mm 01005inch)
> Applied with a high-precision linear scale and rigid mechanism
> Provides precision calibration algorithms and diverse automatic calibration functions

[FLEXIBLE LINE SOLUTION]
Provides optimal line solutions through versatility and productivity improvement
DECAN Line
>Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
> Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
- Responsive to a maximum 740 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)
> Responsive to a maximum 42mm IC when the stage vision option is applied

[EASY OPERATION]
Strengthened equipment software operation convenience
>Convenient production and editing of work programs with built-in equipment optimization software
> Provision of a range of work data and information on a large-scale LCD screen
High-precision, convenient electric feeder
> Calibration and maintenance-free electric feeder
> Improved work convenience with a single reel bank mounted feeder
> Improved productivity through the provision of automatic parts pick-up position alignment between feeders
Reduced work load through parts connection automation (smart feeder)
> Automatic loading and splicing capabilities implemented as an industry first
- Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
> Zero consumables costs for parts connection attained

Successful Experience:

Meraif's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

HANWHA DECAN F2 smt chip mounter picture show

HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 0

HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 0HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 2HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 3HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 4

HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 5HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 6HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 7

HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 8

HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 9HANWHA DECAN F2 smt chip mounter Advanced PCB Chip shooter 10
