JUKI JX-350 SMT Placement LED Pick and Place Machine

JUKI JX-350 SMT Placement LED Pick and Place Machine

JUKI JX-350 SMT Placement LED Pick and Place Machine
JUKI JX-350 SMT Placement LED Pick and Place Machine JUKI JX-350 SMT Placement LED Pick and Place Machine JUKI JX-350 SMT Placement LED Pick and Place Machine JUKI JX-350 SMT Placement LED Pick and Place Machine JUKI JX-350 SMT Placement LED Pick and Place Machine JUKI JX-350 SMT Placement LED Pick and Place Machine

Large Image :  JUKI JX-350 SMT Placement LED Pick and Place Machine Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: LED Pick and Place Machine
Model Number: JX-350

Payment & Shipping Terms:

Price: $60,000.00 - $1,100,000.00/pieces
Packaging Details: LED Pick and Place Machine
Supply Ability: 1000000 Piece/Pieces per Month LED Pick and Place Machine
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: LED Pick And Place Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

JUKI JX-350 SMT Placement LED Pick and Place Machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



Introduce of JUKI SMT Placement

SMT production line machine high speed JUKI pick and placeJUKI chip shooterJUKI SMT placement, for PCB assembly line.

Chip: 32,000CPH chip (Laser centering/Optimum); 21,000CPH chip (Laser centering / IPC9850)

From 0603 to 33.5mmsquare components

JUKI laser centering for high speed, high accuracy placement

 Improved placement quality

Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.

 High-precision placement of diffusion lenses

Capable of up to 1,500 mm long board production, top class board size in industry

Various supply methods

Specification of JUKI SMT Placement

Model JUKI JX-350 SMT Placement
Board size 1time clamping 650mm×360
2times clamping 1,200×360
3times clamping* 1,500×360
Component height 6mm/12mm
Component size 0603(0201) ~ 33.5mm
Placement speed (chip) Optimum 32,000CPH
  IPC9850 21,000CPH
Placement accuracy ±0.05mm(Cpk-1)
Feeder inputs Front-side fixed mechanical
feeder bank(Standard)
Max.40 in case of 8mm tape
Front+rear-side fixed mechanical
feeder bank*1
Max.80
Front+rear-side fixed electrical
feeder bank*1
Max.160*2

*1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder)

Successful Experience:

Meraif's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

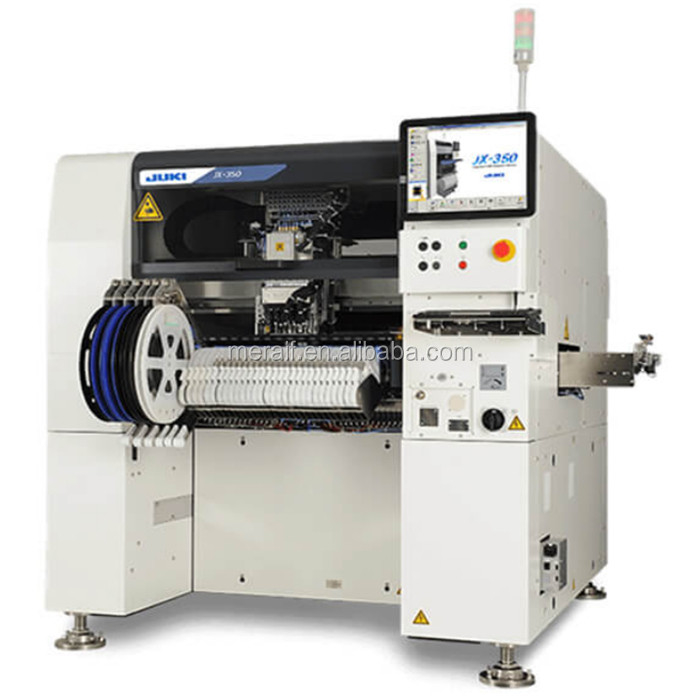

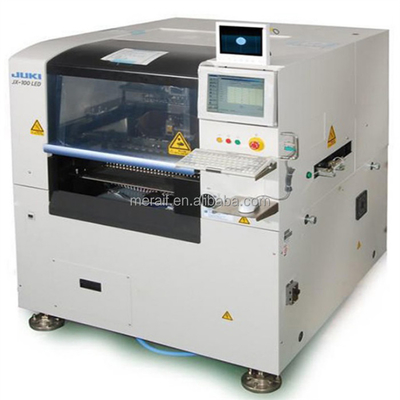

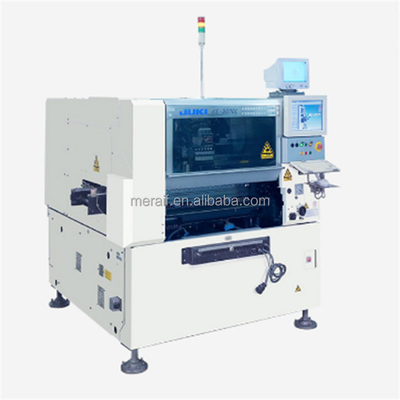

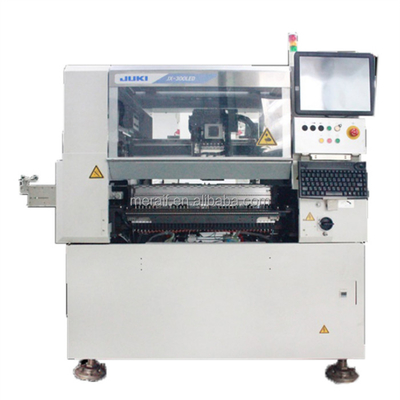

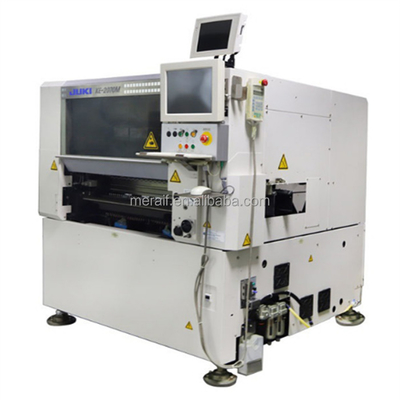

LED Pick and Place Machine picture show

JUKI JX-350 SMT Placement LED Pick and Place Machine 0

JUKI JX-350 SMT Placement LED Pick and Place Machine 1JUKI JX-350 SMT Placement LED Pick and Place Machine 2

JUKI JX-350 SMT Placement LED Pick and Place Machine 3JUKI JX-350 SMT Placement LED Pick and Place Machine 4JUKI JX-350 SMT Placement LED Pick and Place Machine 5



JUKI JX-350 SMT Placement LED Pick and Place Machine 6JUKI JX-350 SMT Placement LED Pick and Place Machine 7JUKI JX-350 SMT Placement LED Pick and Place Machine 8

JUKI JX-350 SMT Placement LED Pick and Place Machine 9JUKI JX-350 SMT Placement LED Pick and Place Machine 10JUKI JX-350 SMT Placement LED Pick and Place Machine 11

JUKI JX-350 SMT Placement LED Pick and Place Machine 12

JUKI JX-350 SMT Placement LED Pick and Place Machine 13JUKI JX-350 SMT Placement LED Pick and Place Machine 14
