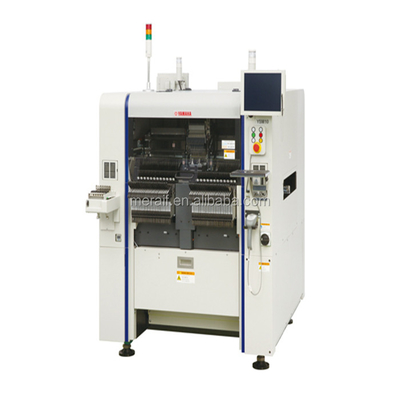

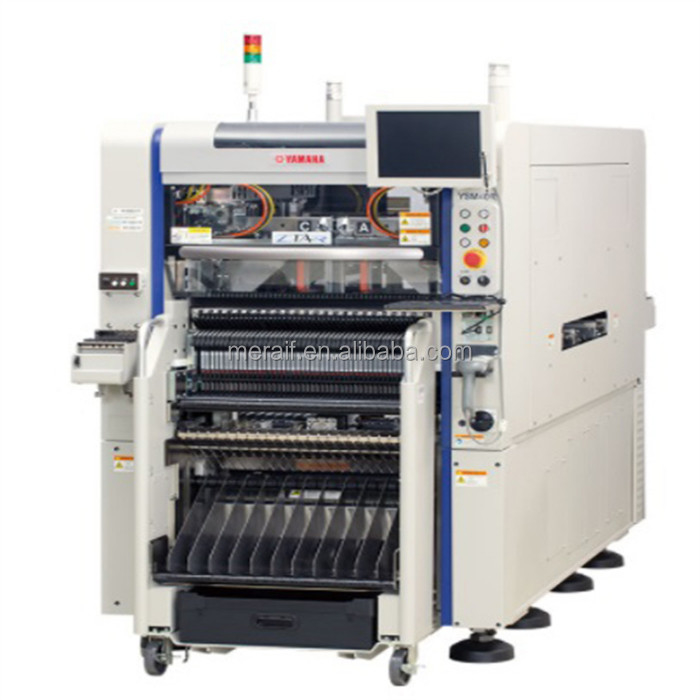

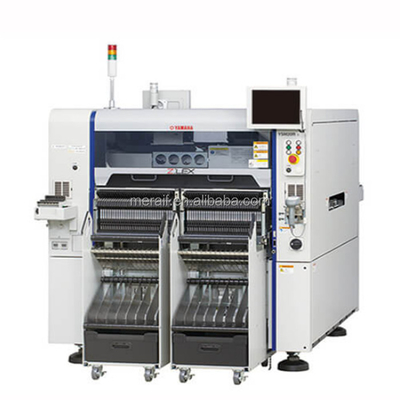

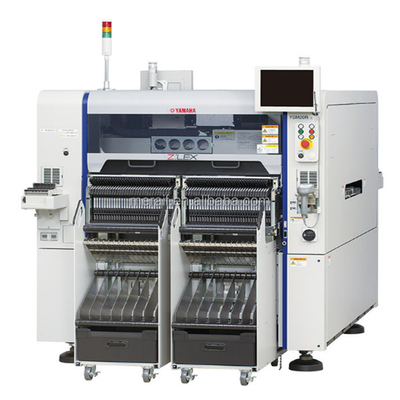

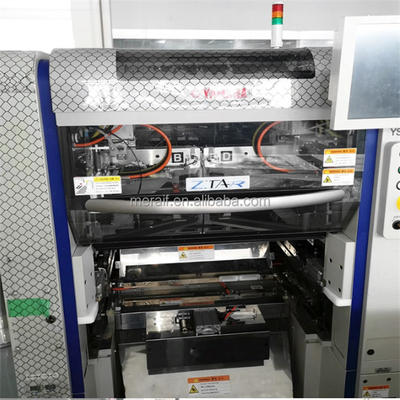

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

Z:TA-R YSM40R

4-Beam, 4-Head Spec. (YSM40R-4)

Applicable PCB

L700×W460mm to L50×W50mm

Mounting capability
(under optimum conditions as defined by Yamaha Motor)

200,000CPH (When using RS head)

Applicable components

Ultra-High-Speed (RS) Head

0201mm* to 6.5mm (Height 2.0mm or less) *option

Multi (MU) Head

03015mm to 45×60mm (Height 15mm or less)

Mounting accuracy
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)

+/-35μm (25μm)
Cpk 1.0 (3σ)

Number of component types
* 8mm width tape conversion

Max. 80 feeders with RS heads
Max. 88 feeders with MU heads
Max. 84 feeders with RS x 2 + MU x 2 heads

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10%

Air supply source

0.45MPa or more, in clean, dry state

External dimension

L1,000×W2,100×H1,550mm (excluding projections)

Weight

Approx. 2,100 kg
