Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine
Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

Large Image :  Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Yamaha chip mounter
Model Number: Yamaha YSM20R

Payment & Shipping Terms:

Price: $60,000.00 - $1,100,000.00/pieces
Packaging Details: PCB chip mounter machine
Supply Ability: 1000000 Piece/Pieces per Month PCB chip mounter machine
Contact Now
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: PCB Chip Mounter Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



Specification of PCB chip mounter machine
Model
YSM20R


Applicable PCB
Single lane
L810 x W490 to L50 x W50
Dual stage Note: For X-axis 2-beam option only
1PCB conveyance: L810 x W490 to L50 x W50
2PCB conveyance: L380 x W490 to L50 x W50


Head / Applicable components
High-Speed Multi (HM) Head *
0201mm to W55 x L100mm, Height 15mm or less
Odd-shaped components (FM: Flexible Multi) head:
03015mm to W55 x L100mm, Height 28mm or less
Mounting capability
(under optimum conditions as defined by Yamaha Motor)
X axis 2-beam: High-speed multi-purpose
(HM: High-speed Multi) head x 2
95,000CPH

Mounting accuracy
±0.035mm (±0.025mm) Cpk more than 1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)


Number of component Types
Fixed plate: Max. 140 types (conversion for 8mm tape feeder)
Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder)
Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source
0.45MPa or more, in clean, dry state
External dimension (excluding projections)
L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight
pprox. 2,050kg (Main unit only)

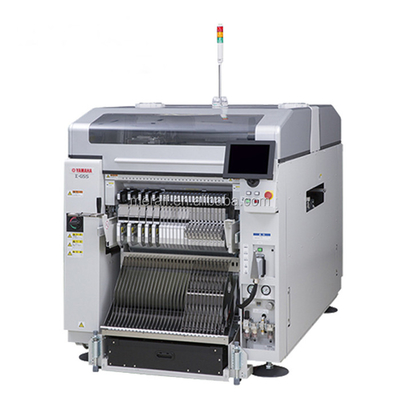

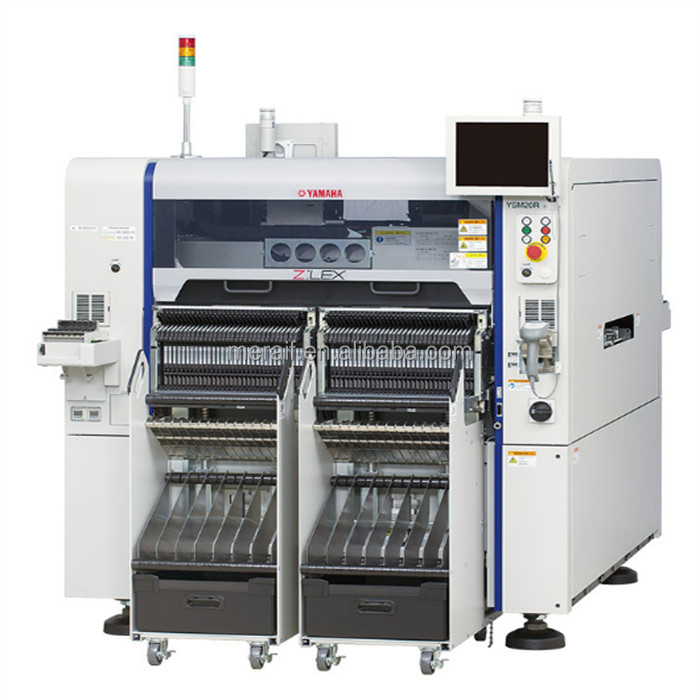

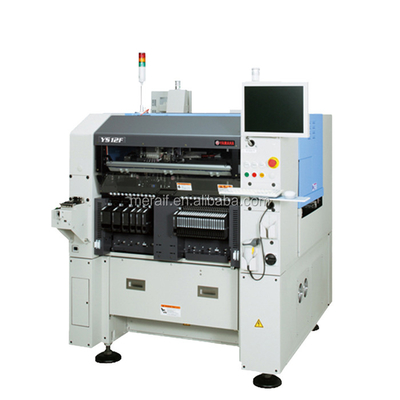

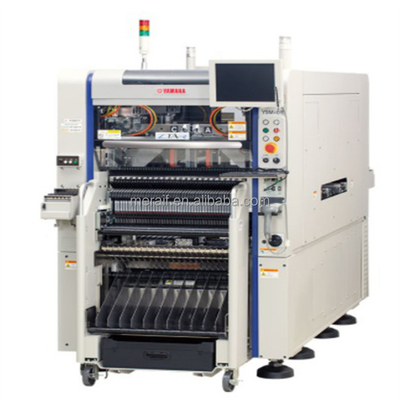

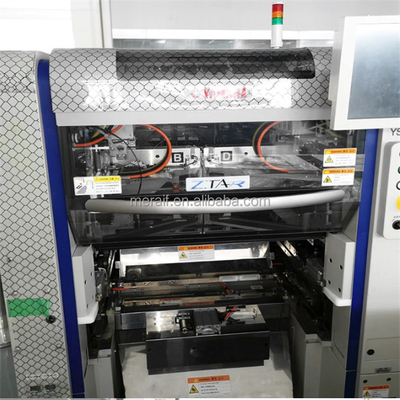

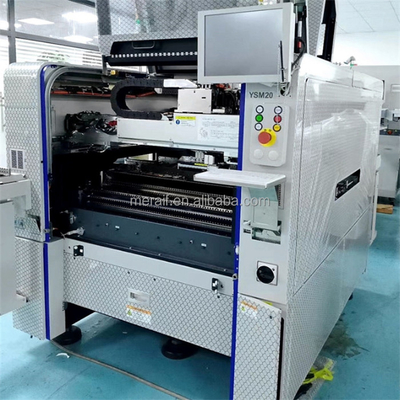

PCB chip mounter machine picture show
Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 0


Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 1Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 2Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 3



Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 4

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 5Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 6Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 7

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 8

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 9Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine 10
