HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine
HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine

Large Image :  HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Samsung chip mounter
Model Number: Hanwha DECAN S2

Payment & Shipping Terms:

Price: $60,000.00 - $1,100,000.00/pieces
Packaging Details: Hanwha placement machine DECAN S2 packing with vacuum wooden case
Supply Ability: 1000000 Piece/Pieces per Month Hanwha placement machine DECAN S2
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: DECAN S2
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 0



Hanwha placement machine DECAN S2

1 Enhance the convenience of equipment software management

2 The equipment is equipped with optimized software, which can realize simple program creation/editing

3 Provide various operation information through large LCD screen

4 Highly convenient high-precision electric feeder

5 Calibration Free & Maintenance Free Electric Feeder

6 The single feeder with integrated structure of Reel Bank improves work convenience

7 Through the automatic arrangement function of the suction position of the components between the feeders, the actual production capacity can be increased

8 Through automatic feeding, the work volume can be reduced by half (SMART FEEDER)

9 The industry's first realization of automatic feeding and automatic receiving functions

The manual feeder preparation and receiving operations are changed to automatic methods, which greatly reduces the operation time

Achieve zero consumption of consumables for receiving materials

Hanwha placement machine DECAN S2

1 Speed: 92000CPH

2 Accuracy: CHIP 28um (03015), IC 25um

3 Mountable components (mm): Chip 03015 ~ 5 axis: 12-h10 10 axis: 6-h10

Number of 4 shafts: 10 x 2 Head

5 Fly Camera FOV: 20.5mm

6 PCB size: 50 x 40 ~ 510 x 460mm

Max. 740 x 460 mm (1,200 x 460 mm)

7 Material station: 120ea

8 Equipment weight: 1,800kg

9 Equipment size (mm): 1,430(L) x 1,740(D) x 1,485(H)

10 Power supply: 3 phase AC 200/208/220/240/380/415V ±10%;

50/60Hz; Max. 5.0 Kva
Hanwha DECAN S2
Advanced Chip shooter
1 Speed : 92,000 CPH (Optimum)
2 Structure : 2 Gantry x 10 Spindles/Head
3 Accuracy : ±28μm Cpk≥1.0 (03015 Chip)
                    ±25μm Cpk≥1.0 (IC)
4 Parts Size : 03015~55mm (H15mm)
5 PCB Size : L510xW460mm (Standard)
                    L1,200xW460mm (Option)
6 Wide Part Handling Capability
7 Various PCB Transfer Systems
8 Verified Production History Management Solution

Specifications
SMT Pick and Place Machine
Alignment
Flying Vision
Number of Spindles
10 Spindles x 2 Gantry
Placement Speed
75,000 CPH(Optimum)
Placement Accuracy
±50μm@μ+3σ (Based on the Standard Chips)
Component Range
Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm)
Board Dimension(mm)
50(L) x 40(W)~510(L) x 460(W)610(L) x 460(W)(Option)
Feeder Capacity
120ea / 112ea(Docking Cart) (Based on 8mm)
Power
AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)Max. 5.0kVA
Air Consumption
0.5 ~ 0.7MPa(5 ~ 7kgf/cm2)
Mass
Approx. 1,820kg
External Dimension(mm)
1,650(L) x 1,690(D) x 1,485(H)

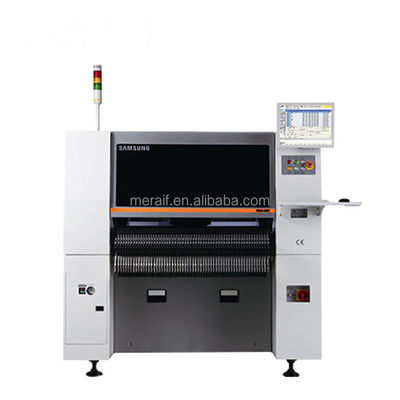

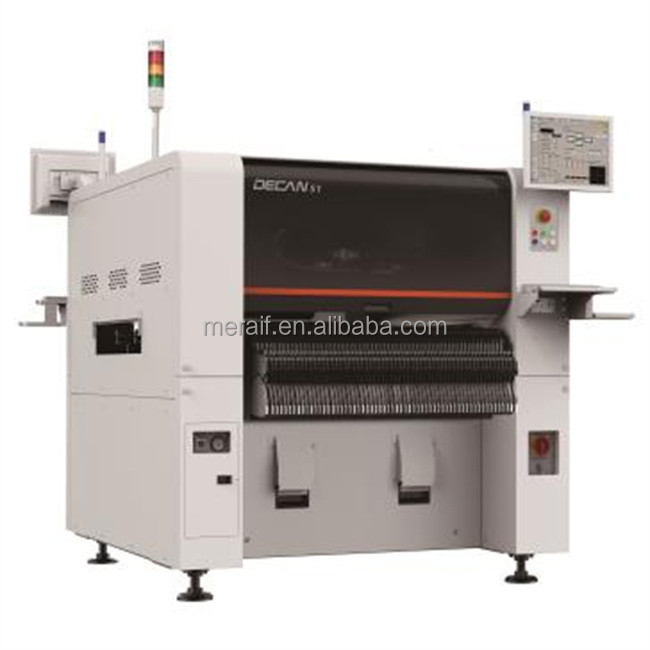

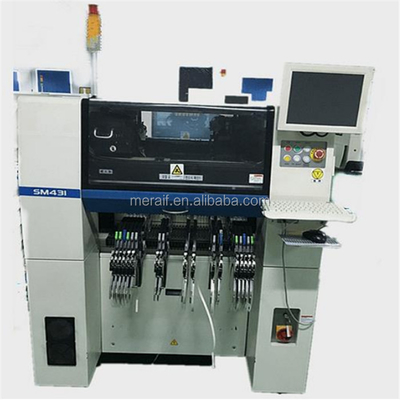

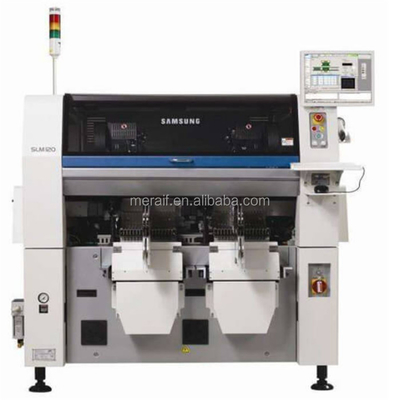

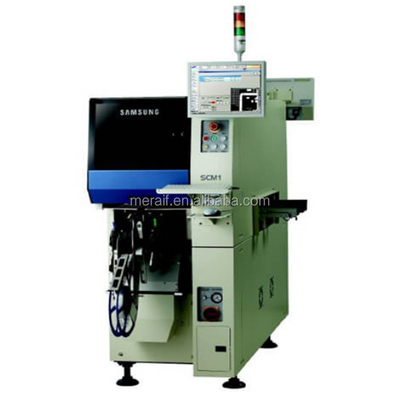

Hanwha DECAN S2 picture show

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 1HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 2HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 3HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 4HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 5HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 6HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 7HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 8HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 9

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 10HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 11HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 12HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 13HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 14

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 15HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 16HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 17

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 18

HANWHA PICK AND PLACE MACHINE DECAN S2 SMT chip mounter machine 19
