Used Yamaha YG200 surface mounter for PCB led assembly line

YG200 chip mounter Specification:

Second-hand Yamaha YG200 placement machine is generally about the 2005-2009 year equipment, the frame was cast once to ensure durability and stability, windows operating system, 4 heads 24nozzles placement, 6 nozzles on each head, 2 pieces can be attached at one time PCB,

dual-axis and double-screw drive ensure high-speed, long-term, high-load and high-precision production. Five kinds of material racks can correspond to all the tape components, realizing the intelligence of the tape rack.

The theoretical 45,000 points per hour. The actual production speed is about 30,000 points per hour. It is a placement machine with medium machine size and high-speed machine speed.

components  Height of components which can be mounted: 6.5mm or less A lowable height on PCB surface before transport 6.5mm or less Number of component types80types(Max, 8mm tape reel conversion)

Power supply3-Phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz

Air supply source0.55MPa or more, in clean, dry states

External dimensionL1,950×W1,408(End of cover)×H1,450mm(cover top)L1,950×W1,608(End of guide for feeder carriage)×H1,450mm(cover top)

Weight Approx 2,080kg

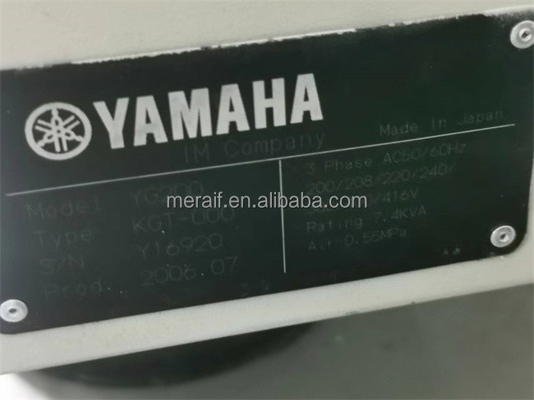

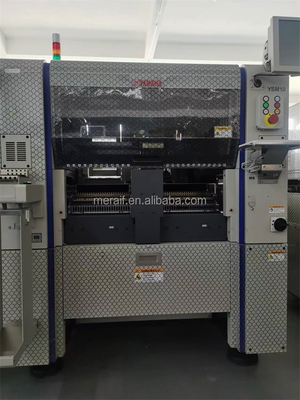

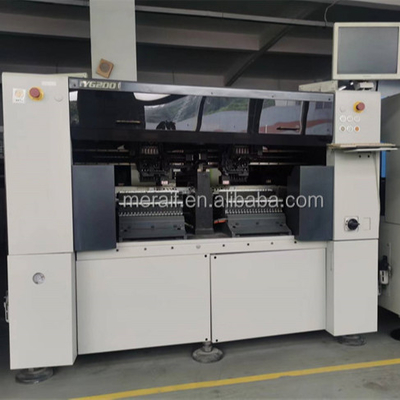

YG200 chip mounter picture show
