Condition: | New | Weight (KG): | 1000 |
---|---|---|---|
Showroom Location: | None | Video Outgoing-inspection: | Provided |
Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
Warranty Of Core Components: | 1 Year | Core Components: | PLC |
Warranty: | 1 Year | Product Name: | SMT Machine Yamaha Sigma-G5S II |
Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
Lead Time: | 7-30days | Port: | Shenzhen |
SMT machine Yamaha sigma-G5S II Pick and Place Machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
Specification of SMT machine Yamaha sigma-G5S II
Compact premium modular mounter featuring “1-head solution” with rotary head for high throughput & accuracy.
SIGMA Overdrive allows each head to share resources making programing easy and more cost effective. Each head can even pick from the others feeders.
Designed to minimize maintenance, down time is reduced or even taken offline with the use of linear motors, swappable cutter and nozzle stocker units.
Save with SIGMA’s lower cost of ownership. Reduce feeder inventory with flexible feeders. These 3 feeders cover 6 different component widths 12/16mm, 24/32mm, 44/56mm.
Model | sigma-G5S II | |
Applicable PCB dimensions | Single lane | L610×W510 mm(Optional: L1,200×W510 ) |
Dual lane | L610×W250 mm(dual feed) | |
Mounting capability | High-Speed Multi-Head×2 specifications: 90,000 CPH | |
Applicable components | High-Speed Multi (HM) Head | 0201 to L44×W44×H12.7 mm or under |
Flexible Multi (FM) Head | 1005 to L72×W72×H25.4 mm or under | |
Mounting accuracy | High-Speed Multi (HM) Head | 0201/03015: ±25um/80,000 CPH |
Flexible Multi (FM) Head | ±0.015 mm | |
Component types | 120 types max. (8 mm wide tape equivalent) | |
Power supply | 3-phase AC200V ±10%, 50/60Hz | |
Air supply | 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²) | |
Exterior dimensions | L1,280×W2,240×H1,450 mm | |
Weight | Approx. 1,800 kg |

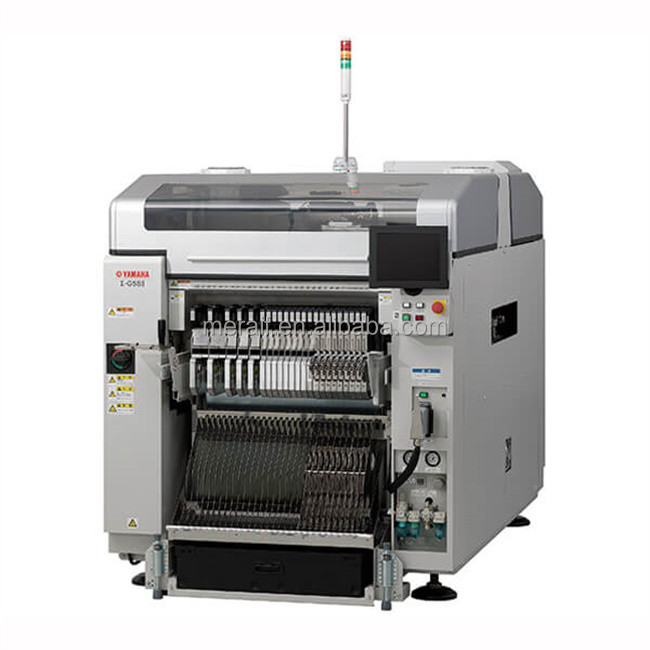

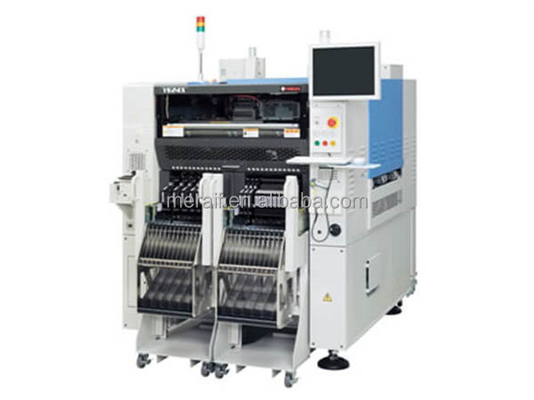

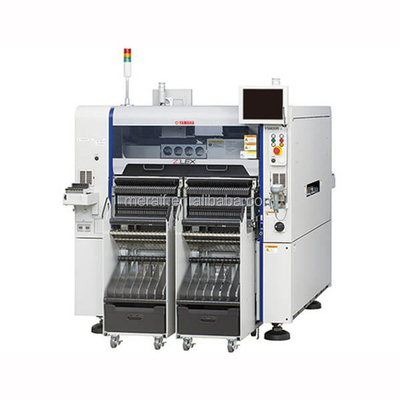

SMT machine Yamaha sigma-G5S II picture show
