SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic

SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic

SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic
SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic

Large Image :  SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: SMT Chip Mounter Machine
Model Number: CM202-DS Pick and Place Machine

Payment & Shipping Terms:

Price: $68,000.00 - $950,000.00/pieces
Packaging Details: CM202-DS Pick and Place Machine
Supply Ability: 1000000 Piece/Pieces per Month CM202-DS Pick and Place Machine
Detailed Product Description
Condition: New Weight (KG): 1500
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: CM202-DS Pick And Place Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: CM202-DS Applicable Components:: 0402,Minimum 01005-38*38*8.5m
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

SMT CM202-DS Pick and Place Machine  SMT chip mounter for Panasonic



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 0

Panasonic CM202-DS Pick and Place Machine Specification:

Sector      Specification(CM202-DS)      Specification(CM201-DS)
ModelNo.     KXF-E24C                              KXF-E14C
TactTime    0.088sec/chip                     0.176sec/chip
B'd change: 3.0 sec
Centering method: Upward Vision
PCB Size(L x W) MAX.460 x 360mm,MIN.50 x 50mm
Placement range: 0°~ 359° θ ±1°                Patch Accuracy: ±0.05mm/chip
FeederStation 104 stations(Double Feeder) 52 stations(Double Feeder)
Components range: 0603 ~ 24mm x 6t
Feeder: 8~72mm Tape Feeder/Bulk Feeder/Vibration feeder/
Tray Feeder
Conv.Transfer Right→Left(Left→Right:Op.) FrontFix (RearFix :Op.)
Power   AC200V 3PH,50/60Hz, 2.5kVA  AC200V 3PH,50/60Hz, 1.5kVA
Air 0.49MPa 400L/min 0.49MPa 200L/min

Dimension(LxWxH)mm

2350 x 1950 x 1430

1390 x 1950 x 1430

Weight(kg) 2620 1460

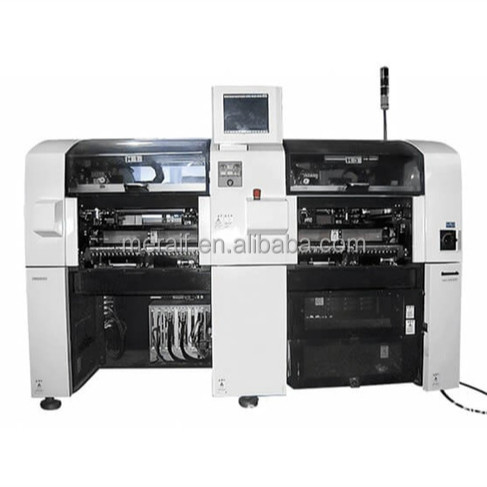

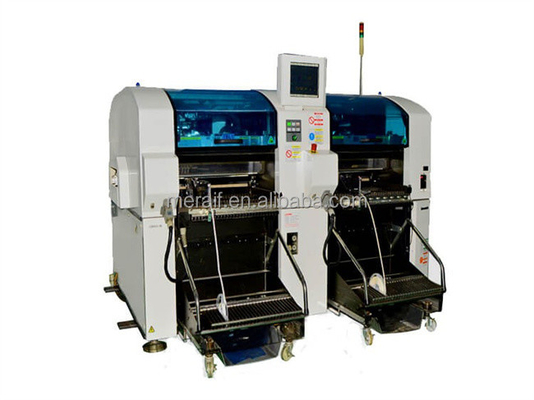

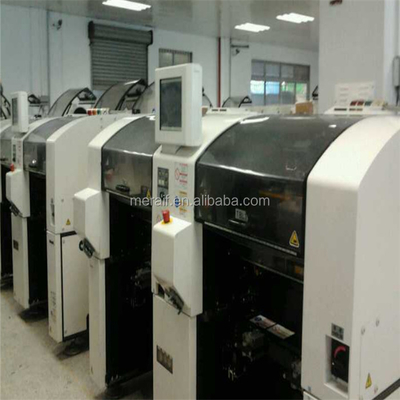

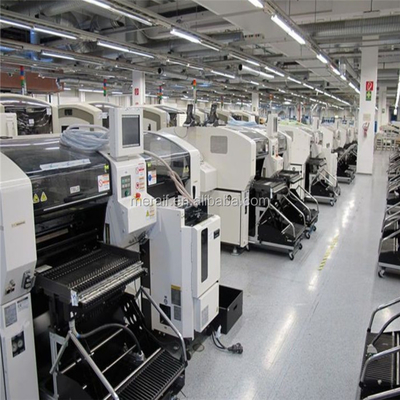

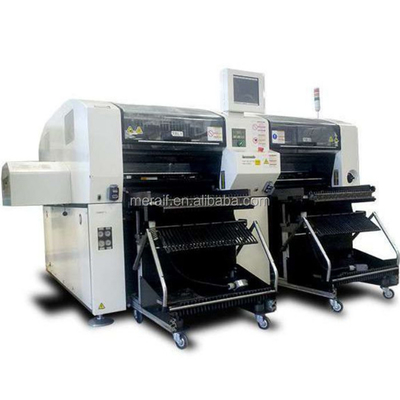

CM202-DS Pick and Place Machine picture show:

SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 1SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 2SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 3SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 4SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 5SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 6SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 7SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 8SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 9



     SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 10SMT CM202-DS Pick and Place Machine SMT chip mounter for Panasonic 11
