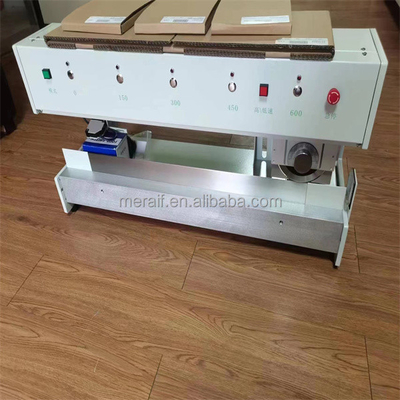

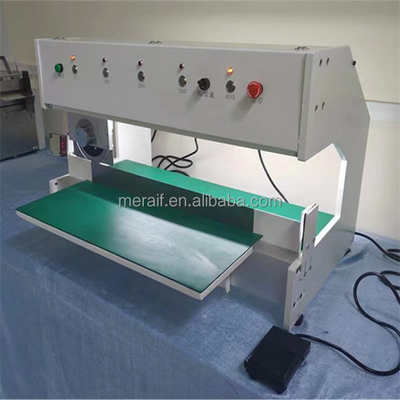

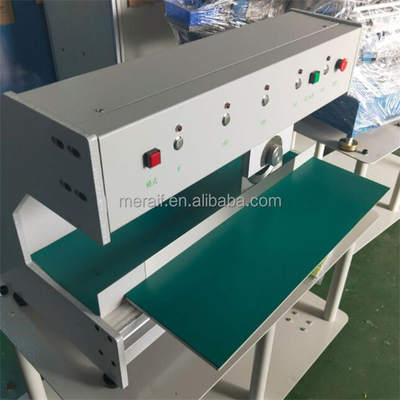

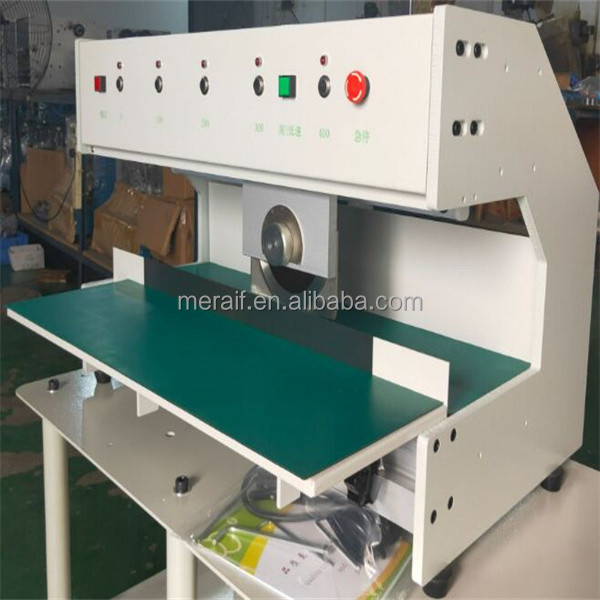

PCB Separator Cutting Machine for smt machine line

PCB Separator Cutting Machine Feature:

1.The nether linear blade is used to fix the PCB V-cut ,the upper circular blade moves to separ-

ate the PCB. By pressing the foot-pedal to control the action of circular blade.

2.Adopt step motor,can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm,600mm,900mm,1200mm is optional)

4.The stroke of the upper circular blade can preset .(setting rang :Between any two groups of 0,100 ,200,300,400mm )

5.Blade moving speed can switch between 300mm/s and 500mm/s.

6.The gap between two blades is easy to adjust

7.Operation is very safe, the circular blade is covered by material ,avoid the blade hurting hand. Also can install an sensor ,when hand or foreign matter enter into the working area,it will stop immediately.

8.Blade material is SKH7 from Sweden,long lifetime.During cutting,it can effectively decrease cutting stress to avoid welding spot cracking.

9.Available PCB thickness:0.5-3.2mm

10.PCB V-cut thickness:0.2-0.8mm
