Product Details:
Payment & Shipping Terms:
|
Condition: | New | Weight (KG): | 1000 |
---|---|---|---|
Showroom Location: | None | Video Outgoing-inspection: | Provided |
Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
Warranty Of Core Components: | 1 Year | Core Components: | PLC |
Warranty: | 1 Year | Product Name: | Pick And Place Machine RX7JUKI |
Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
Lead Time: | 7-30days | Port: | Shenzhen |
Used MACHINE SMT production line Pick and Place Machine RX7 JUKI For LED mobile PCB SMD Production line
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
The latest generation of ultra high-speed mounters
The RX-7R is the first choice when it comes to the high-speed assembly of a large number of printed circuit boards with smaller and smallest components. The successful concept of the RX-7 has been further developed into the RX-7R. The new placement head P16S offers increased accuracy and a longer service life. The compact machine design with a width of one meter has been retained and continues to offer maximum productivity in the smallest of spaces.
High -Speed Compact Modular Mounter RX-7R | ||||
(P16S×P16S head) | (P16S×P8 head) | (P8×P8 head) | ||
Board size | Single lane conveyer | 50×50~510mm×450mm | ||
Single lane conveyer Single lane mode | 50×50~510mm×450mm | |||
Single lane conveyer Dual lane mode | 50×50~510mm×250mm | |||
Component height | 3mm | 3mm(P16S head) | 10.5mm | |
10.5mm(P8 head) | ||||
Component size | 03015~5mm | 03015~5mm(P16S head) | 0603~25mm | |
0603~25mm(P8 head) | ||||
Placement speed(Optimum) | Chip | 75,000 | 54,900 CPH | 34,800 CPH |
IC | - | 6,400 CPH | 12,800 CPH | |
Placement accuracy | Chip | ±0.04mm(Cpk≥1) | ||
IC | - | ±0.04mm | ||
Feeder capacity | Up to 56 | |||
Power supply | 3 phase AC200V,220V-430V | |||
Apparent power | 2.3kVA | |||
Operating air pressure | 0.5±0.05MPa | |||
Air consumption (standard) | 20L/ANR(during normal operation) | |||
Machine dimensions (W x D x H) | 998×1,895×1,530mm | 998×1,895×1,530mm | ||
Mass (approximately) | about 1,820kg |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

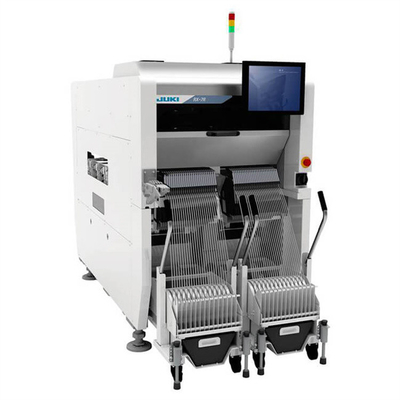

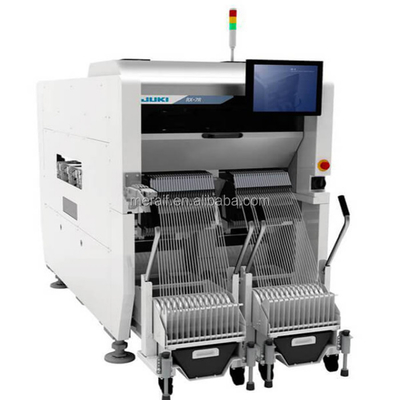

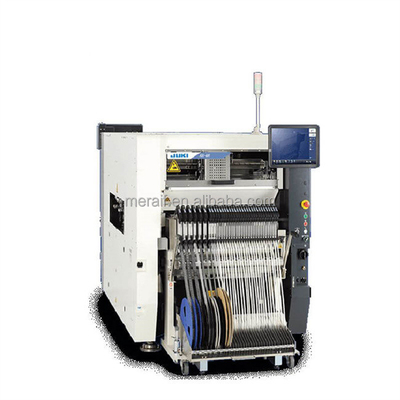

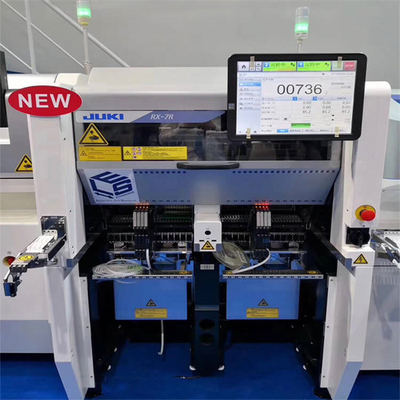

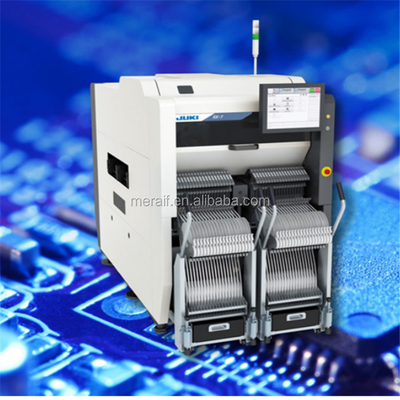

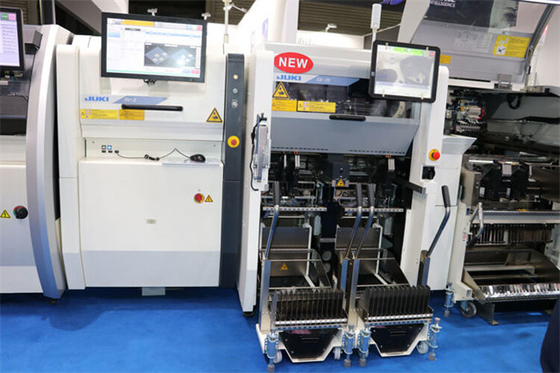

Pick and Place Machine RX7JUKI picture show
