Introduce of Ke-2030 Chip Mounter

JUKI 2030 is 20000CPH can achieve high-speed performance "double-chip high-speed placement machine."

Not only can be used around 2 patch head to mount two substrates at the same time,

but also to achieve the same type of mounting the highest efficiency,

The equivalent of two JUKI 2010.

1) PCB size: 330mmX250mm

2) Can be attached to the component range: 0402,0603 chip -26.5X11mm or 20mm square components

3) The number of stations: 60 x 2

4) theoretical chip speed: 20000 (grain / hour)

5) Mounting accuracy: Laser identification ± 0.08mm

6) Size and weight: L1900 / W1476 / H2000 & 6000KG

7) Weight 1400 (kg)

Power three-phase AC200-415 (V)

8) Patch speed 19000CPH (grain / hour)

9) Resolution ± 0.05mm (mm)

Manufactured in 2000,

PCB size: 330mmX250mm

Components can be affixed to range: 0402,0603 chip-26.5X11mm or 20mm square components

Feed station number: 60 x 2

Theory Chip Speed: 20000 (tablets / hour)

Placement accuracy: ± 0.08mm laser identification

Size and weight: L1900/W1476/H2000 & 6000KG

Power and gas supply: 3PH, 200V, 5KVA

Configuration: 0603 2 sets of each nozzle; Manual CD-ROM

Specifications

Vintage:2004

Placement:20,000cph

2 multi nozzle laser heads(8 nozzles)

From: 0603 (0201)chip to 26.5 x 11mm chip or 20mm square chip

Simultaneous placement of components onto two boards

Medium board size: 330 x 250mm

Large board size: 410 x 360mm

Extra large board size: 510 x 460mm

Applicable component height: 6mm, 12-20mm

Component size: 25mm, 0603 chip, from 1005 chip

to 20mm square chip or 26.5 x 11mm chip.

From 1005 chip to 50mm square chip or 50 x 150mm chip

Component placement speed: chip, IC: 20,000cph

Component placement accuracy: Laser recognition +/- 0.08mm

Vision Recognition

Max. unique components: 120 per side using 8mm tape feeders

Feeders type available: tape- 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, and 56mm.

Stick/ bulk/ tray not available

Power: 3 phase 200/220/240 or 380 VAC

Compressed Air: 71psi

Operating System: Windows NT

Programming Methods: On line: teach with placement head, teach camera, key board only

Off Line: keyboard entry, CAD data conversion with optional software

Program Size: Maximum 3000 placements per circuit, not to exceed 10,000

Maximum 100 non-matrix or 400 matrix circuits per PCB.

Data entry resolution: X/Y axis 0.0004” (o.01mm)

Teta axis (rotation) 0.05

Successful Experience:*1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder)

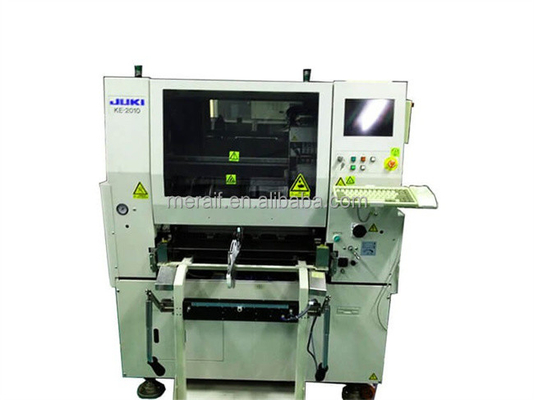

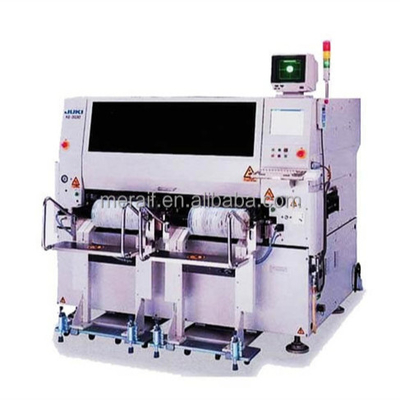

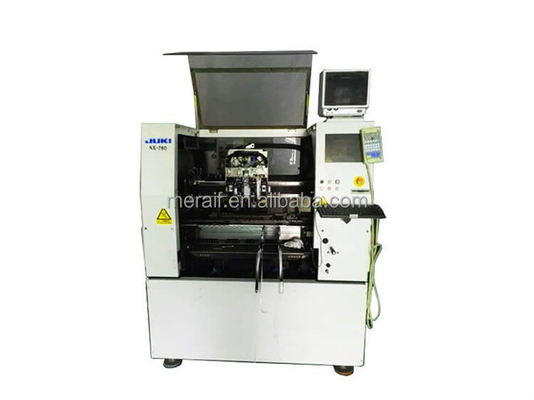

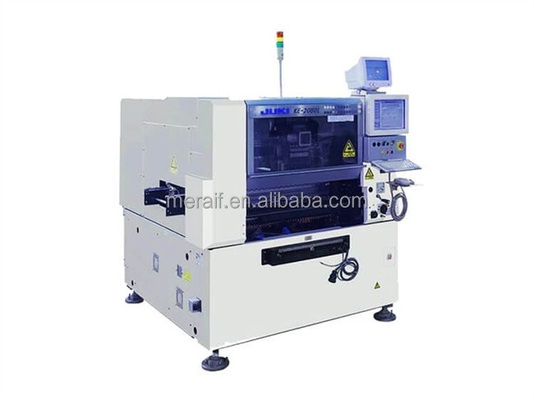

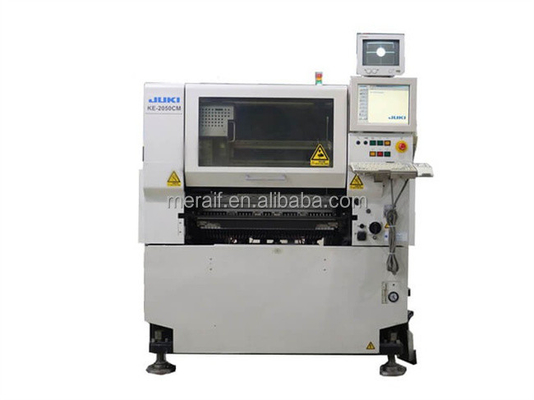

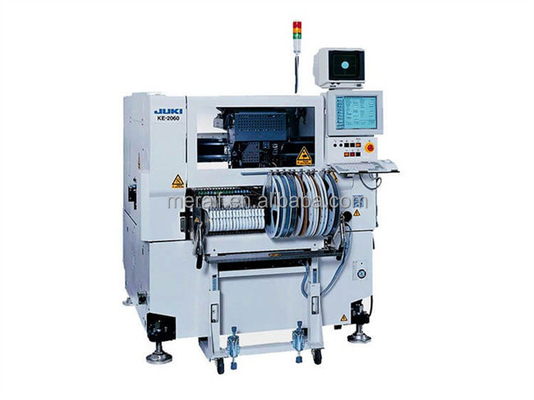

Ke-2030 Chip Mounter picture show
