JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI

JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI

JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI
JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI

Large Image :  JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Pick and Place Machine
Model Number: JM-100 Hybrid Pick and Place Machine

Payment & Shipping Terms:

Price: $1.00 - $2.00/pieces
Packaging Details: chip mounter machine For JUKI packing with vacuum wooden carton
Supply Ability: 1000000 Piece/Pieces per Month chip mounter machine For JUKI
Detailed Product Description
Condition: Used Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: Chip Mounter Machine For JUKI
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: RS-1 Applicable Components:: 0402,Minimum 01005-38*38*8.5m
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

 JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 0JM-100 chip mounter machine For JUKI

Multi Task Platform

Best speed in this category. Significant speed increase over previous generation. Component insertion time down to 0.6 seconds for
vacuum nozzle and 0.8 seconds for gripper nozzle.

Advancing versatility, quality and speed

Best in class speed.
Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.
New "Takumi head" with multiple recognition heights
Component Feeding
Line control using JaNets software

Multi Task Platform JM-100



L size board

Board size

410×360mm

PCB Weight

max.4kg

Component height

max30mm

Component Size

Laser recognition

0603~50mm

Vision recognition

3mm~50mm

Insertion Speed
(Insertion components)

Vacuum*2

0.6sec/part*1*3*4

grip

0.8sec/part*2*3*4

Placement Speed
(SMT)

Chip ( Optimum)

16,000CPH*3*4

Placement Accuracy
(SMT)

Laser recognition

±0.05mm(3σ)

Vision recognition*1

±0.04mm

* 1 Specification conditions
(Applicable part: Aluminum electrolytic capacitor (φ 8 mm), Feeder: two MRF-S, Placement conditions: Simultaneous pick, sequential insertions using 2 nozzles)
* 2 Specification conditions
(Applicable part: Connector (4 pin), Insertion conditions: 2 sequential picks and insertions using 2 nozzles)
* 3 Board transfer and mark recognition time not included.
* 4 When the part height is 16 mm.

JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 1

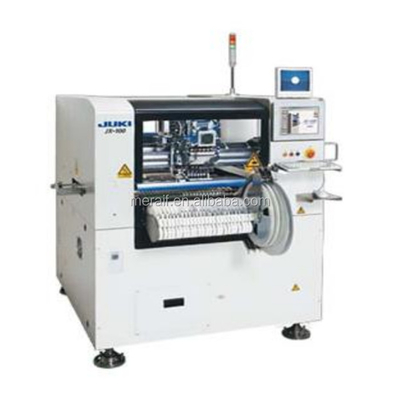

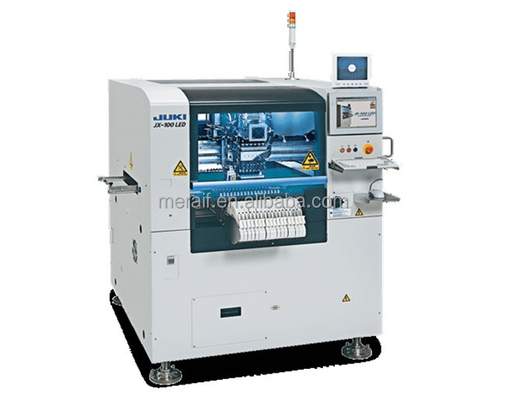

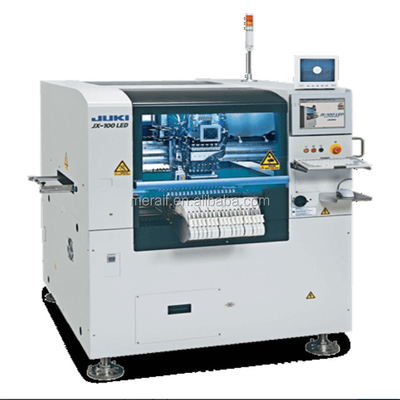

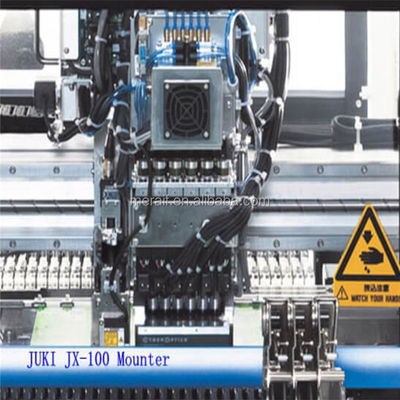

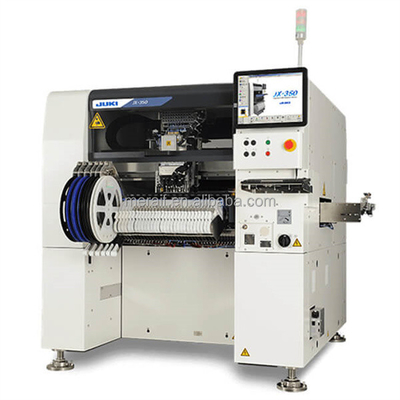

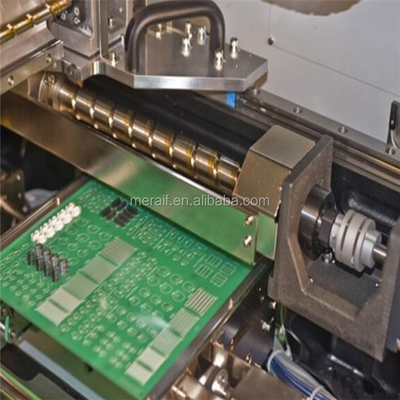

chip mounter machine For JUKI picture show:

JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 2JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 3JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 4

JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 5JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 6JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 7JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 8JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 9JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 10JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 11JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 12

JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 13JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 14JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 15JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 16

Smt machine parts we can support you as follow:



JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI 17

Anything please feel free contact
