Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi
Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi

Large Image :  Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Pick and Place Machine
Model Number: Sigma G5 Flexible Modular

Payment & Shipping Terms:

Price: $1.00 - $2.00/pieces
Packaging Details: Sigma G5 Flexible Modular packing with vacuum wooden carton
Supply Ability: 1000000 Piece/Pieces per Month Sigma G5 Flexible Modular
Detailed Product Description
Condition: Used Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: Sigma G5 Flexible Modular
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: RS-1 Applicable Components:: 0402,Minimum 01005-38*38*8.5m
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 0

Sigma G5 Flexible Modular details:



Hitachi SIGMA Compact Premium modular mounter achieves high productivity and high quality with functions such as direct drive head, overdrive motion detection apparatus, and linear motor-driven XY beams. Hitachi SIGMA-G5 Pick and Place Machine allows you to quickly change the head units and tray units so that you can flexibly handle changes of component types. This SMT Chip mounter offers significant improvement in operations and maintenance.



Hitachi Mounter SIGMA G5 Features:

Operating system and display Windows XP; color LCD touch panel display series SIGMA G5 module placement machine Hitachi series direct-drive module Mounter equipped with 15 nozzles direct-drive head, linear motor drive XY axis, do not stop a recognition, Y-axis optimization adjustment to achieve a high yield of 65000CPH.



Concept:

Overdrive motion

Ultimate access

Super wide range DDH V5

Smart operation

Voluntary line operation

Wide-open &Easy access

Quick exchange

Auto changeover PP type

LISA

Feeder hot-swap

Chip theory speed 84500chip

Placement range 1005 (0402) -32mmIC

Placement accuracy plus or minus 0.03mm

Power 1.80kWh



Hitachi SIGMA G5 parameters

Mounting head structure of high-speed head 2 placement head/module, 15 nozzle/placement head

Universal head 2 placement head/module, 3 nozzle/placement head

High-speed head 70,000 cph (1 module)

Universal head 14,500cph (1 module)

High precision head 40um with 30um head

Applicable components Length and width High-speed head 0.4 x 0.2mm ~ 44 x 44mm

Universal head 1.0 x 0.5 ~ 55 x 55mm 150 x 26mm

The thickness of high-speed head 12.7mm universal head 25.4mm

Power AC3 phase 200V ± 20V 50 / 60Hz

Apparent power is about 7.4 kVA

Power consumption per hour is about 1.80kWh

Ambient temperature 20 ± 10

Ambient humidity 30 ~ 80%

Air pressure 0.45 ~ 0.69Mpa (4.6 ~ 7Kgf / cm2)

Vacuum pressure -93kPa

Floor load-bearing 1,009kg


Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 1

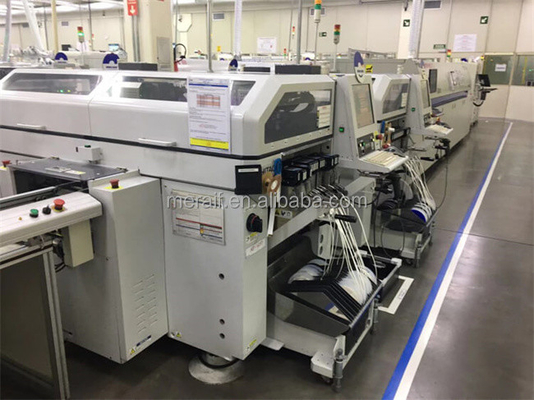

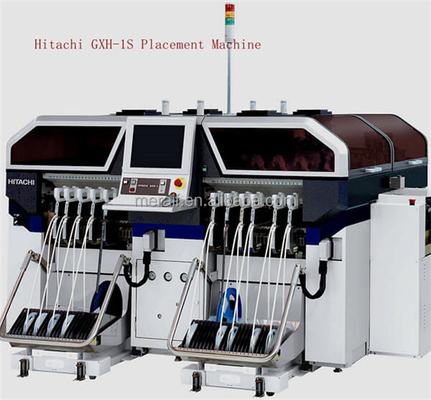

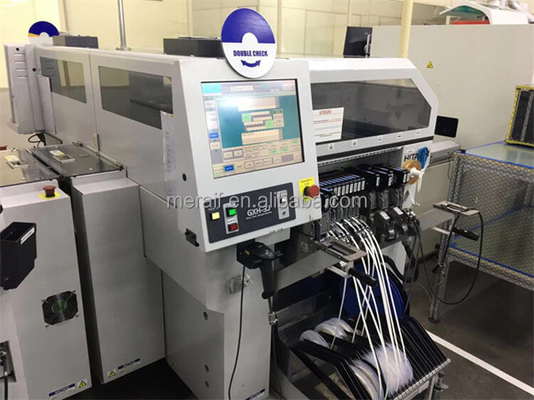

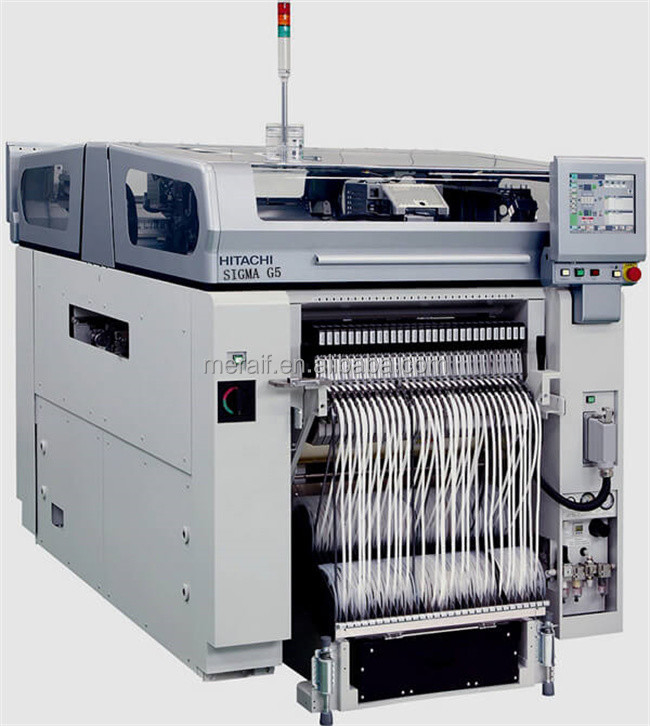

Sigma G5 Flexible Modular picture show:

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 2

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 3Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 4Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 5

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 6Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 7Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 8

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 9Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 10Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 11

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 12Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 13Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 14Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 15

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 16Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 17Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 18Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 19Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 20Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 21Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 22Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 23

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 24Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 25Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 26Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 27

Smt machine parts we can support you as follow:



Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi 28

Anything please feel free contact
