8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel Handle For Glass Stone

8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel Handle For Glass Stone

8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone
8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone

Large Image :  8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel Handle For Glass Stone Get Best Price

Product Details:

Place of Origin: Guangdong, China
Brand Name: Vacuum Suction lifter Sucker
Model Number: Vacuum Suction Cup

Payment & Shipping Terms:

Minimum Order Quantity: 2 pieces
Price: $25.00/pieces 2-99 pieces
Packaging Details: Vacuum Suction Cup packing with carton
Supply Ability: 1000000000 Piece/Pieces per Month
Detailed Product Description
Grade: Industrial Warranty: Vacuum Suction Cup
Customized Support: OEM Item: Vacuum Suction Cup
Brand: MR002 Vacuum Suction Cup Material Of The Handle: Aluminium Die-casting
Material Of Rubber Cup: ABS Plastic Vertical Suction:: 200kgs

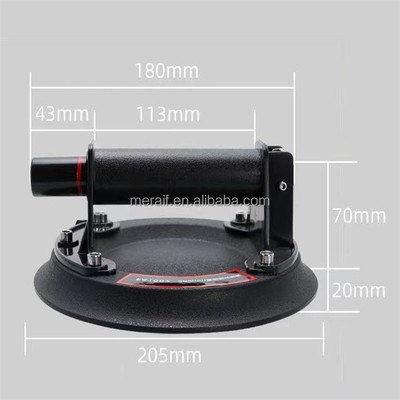

Rubber Thickness: 3cm Sucker Diameter: 200mm
Payment: TT,Western Union,money Gram,paypal And So On Hand Length: 180mm
Whatsapp: +8613424013606 Port: Shenzhen

8inch  Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel Metal Handle For Glass Stone

whatsapp:+8613424013606,skype:sensenhenhao

Vacuum Suction Cup Specifications:

Perfect for pulling out metal dents with a quick release handle.
Also can be used on windows, mirrors, doors which have smooth surfaces.
Ideal for home, shop, garage or workplace use.

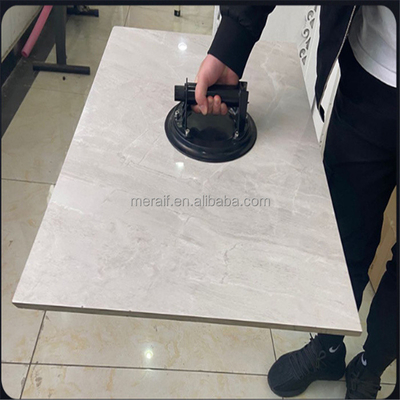

 Application: building brick stone, ceramic tile, floor tile, glass installation or replacement, car repair etc.

Use tips: Surface need to be smooth ,relatively flat and non-porous.Surface should be free of oil, grease or water ,otherwise slipping can occur ,Non-porous materials such as glass, plastic and polished stone are good examples.
Max. vacuum lifter capacity 200kg
Type

suction cup vacuum lifter/pump suction cup lifter

Material ABS
Usage introduction

1.Clean the rubber pad and object to be sucked, put rubber pad face to object, press suction cup onto object then press black button few times, when red warning line inside, u can lift or move now.

2. press back button to release, and finish one lifting or moving.



The Feature for our Glass suction:Durable,long life,high quality

Vacuum Suction Cup picture show:

8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 08inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 18inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 28inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 3

8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 48inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 58inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 68inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 78inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 88inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 9



How to use(Very easy):
To Attach
1) Position the hand cup on the contact surface so the red line will be visible if it should appear while lifting the load. CAUTION: Test the cup for staining or deformation of load surfaces with light colors or soft coatings.
2) Pump the plunger until the cup attaches completely. When the red line is hidden, vacuum is sufficient for lifting.
3) Check the plunger frequently to make sure the cup remains securely attached. If the red line appears while lifting, set down the load immediately and pump the plunger until the red line is hidden again.
To Release
1) Set the load on a secure support.
2) Press the valve release lever until the cup disengages completely.

Vacuum Suction Cup catalogue

8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 108inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 118inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 12



Vacuum Suction Cup  price list

8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 13



Contact supplier



8inch Pump Action Vacuum Suction Cup Lifter Sucker With ABS or Steel  Handle For Glass Stone 14

 Send inquiry

Payment Terms

  1, Accept payment via  T/T, Western Union,paypal ,Alipay,Trade insurrance.

 2, Stock order: pay all before delivery the goods.

 3, OEM/ODM order: 30% payment in advance before we arrange for production and pay balance before deliver goods.

  Delivery Date

1, Stock order: within 48 hours after we received the payment.

2, OEM/ODM order: 15~30 workdays according to order quantity.

Shipment Method

 1, Express delivery: we offer FedEx, UPS, DHL, TNT, EMS, etc. convenient transport. Customer can choose methods according to your condition.

 2, Air parcel and ocean shipping. Shenzhen Port for shipment. Other ports chosen according to customer's requirement.
