SMT Loader PCB Loader Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Weight (KG): | 140 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Item: | SMT Loader PCB Loader |
| Whatsapp: | +8613424013606 | Skype: | Sensenhenao |
| Air Pressure And Flow:: | 4-6bar, ≤10L/min | Transmission Height:: | 920±20mm |
| Circuit Board Thickness:: | ≥0.4mm | Frame Size:: | 355x320x563 |
| PCB Allowable Size:: | (50-50) X (350x250) | Step Selection:: | 1-4 (10mm Step) |
| Transmission Direction:: | Left To Right Or Right To Left | Port: | Shenzhen |
SMT Loader PCB Loader Machine
Whatspp:+8613424013606,skype:sensenhenhao
Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.
Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.
SMT Loader PCB Loader details
| model:MFL-250 SMT Loader PCB Loader |
| Machine size:1100x780x1200 |
| Control module: Siemens PLC industrial control |
| Frame time: about 6 seconds |
| Tank replacement time: about 20 seconds |
| Power and load: 220v/0.3kw |
| Air pressure and flow: 4-6bar, ≤10L/min |
| Transmission height: 920±20mm |
| Transmission direction: left to right or right to left |
| Circuit board thickness: ≥0.4mm |
| Step selection: 1-4 (10mm step) |
| Sensor brand: Omron |
| Stepper and transport motors: Taiwan CUHK |
| Frame size: 355x320x563 |
| Fault detection: I/O signal detection |
| Equipment weight: 140kg |
| PCB allowable size: (50-50) x (350x250) |

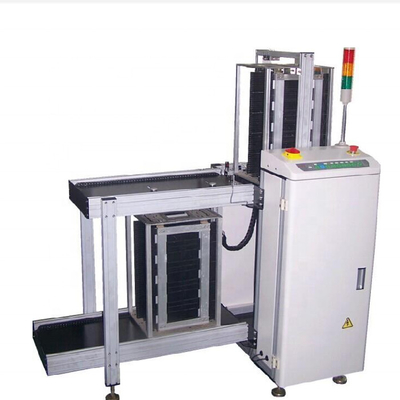

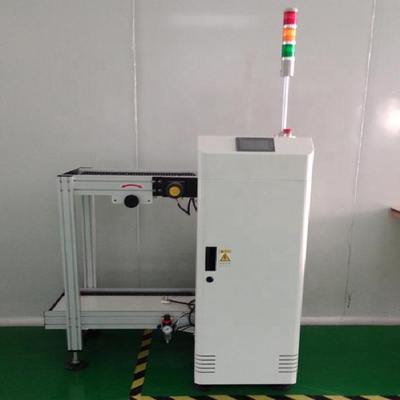

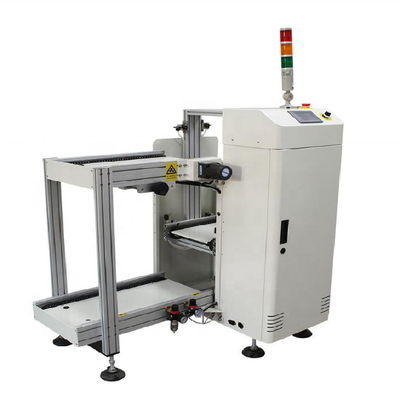

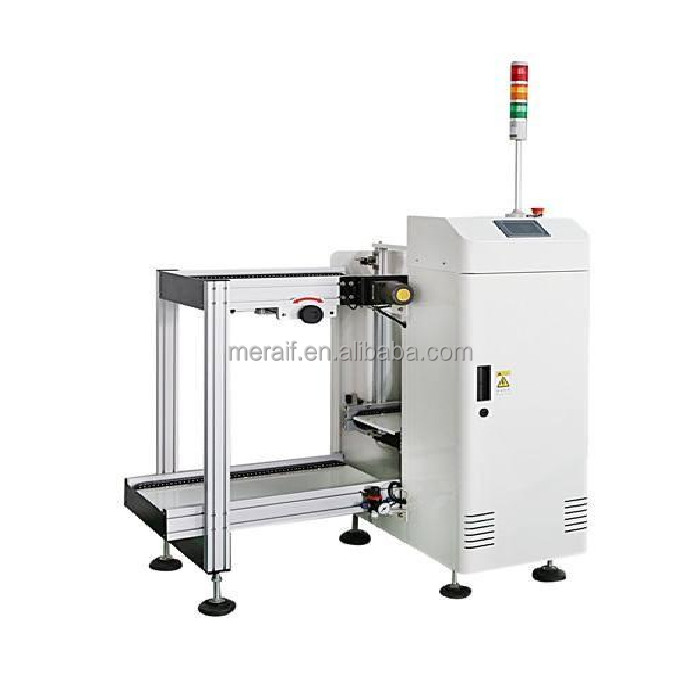

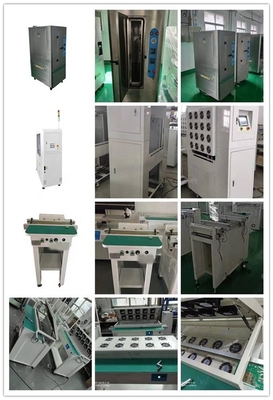

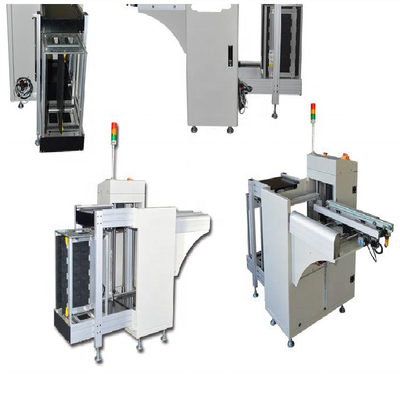

SMT Loader PCB Loader picture show:
