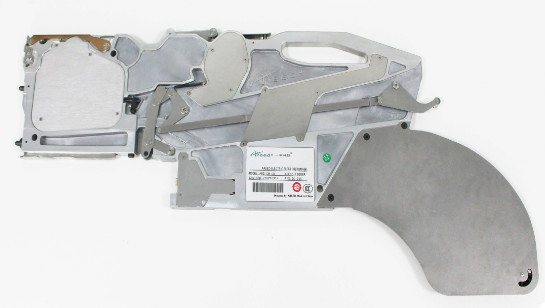

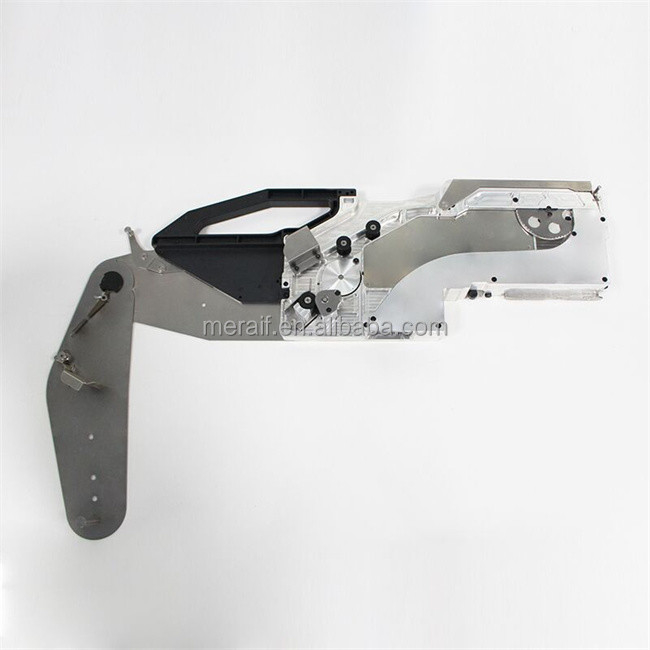

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm
OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm

Large Image :  OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm Get Best Price

Product Details:

Place of Origin: Guangdong, China
Brand Name: electronic feeder for Hanwha
Model Number: SME Feeder 32mm

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: $735.00/pieces 10-199 pieces
Packaging Details: SME Feeder 32mm packing with foam +carton
Supply Ability: 2000000 Piece/Pieces per Month SME Feeder 32mm
Detailed Product Description
Condition: New Weight (KG): 3
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: SME Feeder 32mm
Warranty: 1 Year Item: SME Feeder 32mm
Applicable Models:: All Models Of SM Series Alternative Feeder:: SM SME Feeder
Whatsapp: +8613424013606 Wechat: JoyLY0322
Skype: Sensenhenhao Web: Https://www.smtproductionline.com
MOQ: 10PCS Lead Time: 3-7days
Package: Carton Port: Shenzhne



OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm

whatsapp:+8613424013606, skype:sensenhenhao,wechat:JoyLY0322

 OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 0

We are smt solution provider more than 16yeras.

All smt machine line and parts, PCBA cleaner machine line we can support you.

 OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 1

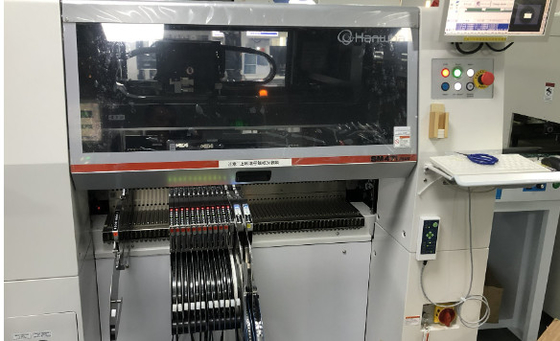

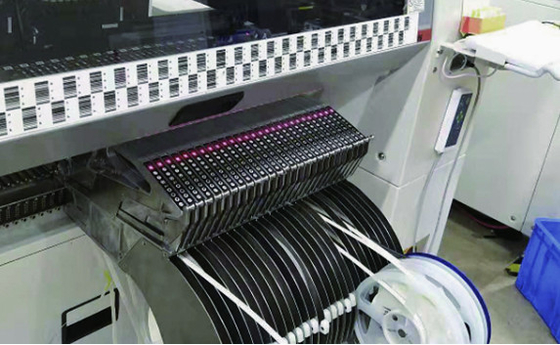

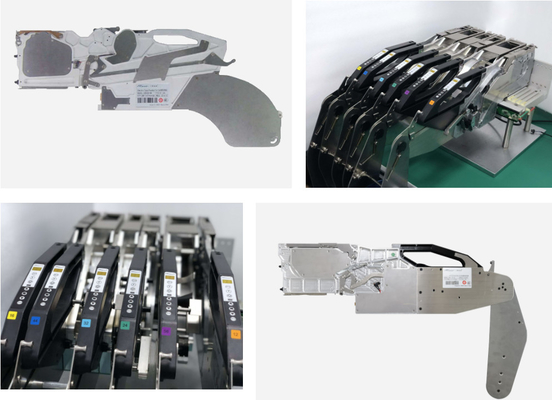

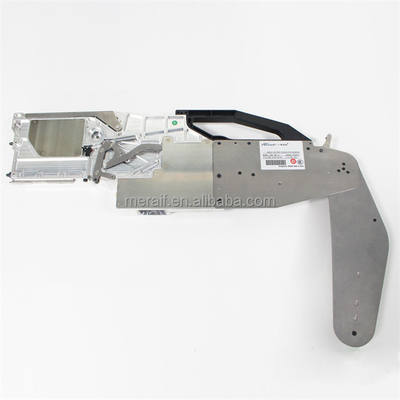

OEM electronic feeder for Hanwha SM series pick and place machine

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 2

SME Feeder 32mm parameters

Applicable models: all models of SM series

Alternative Feeder: SM SME Feeder

Main body material: aluminum alloy

Positioning method: double-pin guide rail positioning, connecting rod locking

Electrical interface: 5 PIN contact interface

Voltage: DC24V

Current: 0.5A | 2.5A MAX.

Communication method: Pulse

Drive mode: electric drive

Feeding speed: 68ms/pcs 4mm pitch

Feeding accuracy: X axis ±0.05mm, Y axis ±0.05mm

Feeding speed: 80000CPH

Lamination recycling: rear storage bin or inclined-pull winding mechanism

Applicable package: 8/12/16/24/32/44/56MM standard SMT package

Applicable materials: all materials that can be packaged in standard SMT

Refueling method: overall refueling, tape refueling

Working temperature: temperature -20~65℃

Working humidity: humidity 20~90%RH, no condensation

Storage temperature: temperature -40~85℃

Storage humidity: humidity 10~95%

Drop crash test: body 0.5kg/cm2

Aging Test: 1000 hours of continuous work without abnormality

Operation Record: Complete and consistent

Service life: >=20K hrs.MIL-HDBK-217F(25℃)

SME Feeder 32mm Remarks:

Pitch Display:Indicates the feeding distance

Pitch Change:Click Toggle Spacing.

Y Dirction Tuning:In fine-tuning mode, the keys advance slowly.

Direction Setup:Press and hold for 3 seconds and the indicator turns yellow to enter the fine-tuning mode. Click Save Current Position when fine-tuning is complete between.

Working Indicator:Green light indicates normal operation; yellow light indicates setting status; red light indicates error message.

Forward Key:Click the forward button, the material belt will advance one step, long press to advance continuously.

Reset  Key:When the FEEDER light is red, click to restore to normal state.

Reverset  Key:Click the back button, the material strip will go back one step, long press to go back continuously.

 Take Rell  Key:Press and hold the tape motor to work, and press the tape button to automatically retract into the lamination feed bin when feeding.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 3OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 4

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 5

The stepper motor replaces the cylinder drive of the traditional feeder, and the precision copper gear replaces the mechanical link drive. By taking the electrical contact pin and connecting the 24V safety power supply, the shielding sensor converts the mechanical signal of the placement machine into an electrical signal and controls the feeder to work.



OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 6



Upgrade advantage: Wide range of electronic material models. 8mm is compatible with two packaging methods of paper tape, and 1mm/2mm/4mm steps can be switched with one key. One AREED 8mm electric feeder can be used instead of the original three 8mm feeders; one AREED12mm can be used instead of 12mm and 16mm feeders.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 7

Precision advantage: The drive motor runs with a smaller amplitude than the cylinder, which reduces the material deviation caused by vibration. High-precision feeding gears are matched with high-precision motors to ensure accurate feeding every time. The self-developed FEEDER calibrator can capture the X/Y coordinate value of each feeding, and calculate the CA\CP and CPK values to judge the consistency of the feeding accuracy of each FEEDER.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 8



Speed advantage: Feeding speed: The self-developed control board software algorithm is more scientific and reasonable. The stepping motor is equipped with an acceleration gear, and the feeding speed of the FEEDER exceeds the SM feeder's reclaiming limit. Line change speed: stripping tape directly above, with self-contained film storage room; batch line change without disassembling the feeder, automatic warehouse opening reminder when the material is full, truly realizes the function of non-stop material change, and the line change efficiency can be increased by more than three times.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 9

Compatibility advantage: Applicable to all HANWHA SM series placement machine FEEDER platforms on the market. No need to change or destroy the original line, simple, safe and effective. It does not interfere with the original feeder station, and can be used alternately at the same time.

Feeding method

 OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 10

Mount tape onto holder, ensure cover layer tape passes through component feeding guide.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 11

Open safety lock,open tape guide.

 OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 12

Peel off cover layer tape and ensure carrier sits onto pin in sprocket.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 13

Press and Open safety lock, colse tape guide and ensure safety lock.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 14

Pass the cover layer tape over pulley and betwwen take up gear tooth. Ensure tape is securely latch onto gear,close cover.

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm 15

Manually wind take up gear to secure and tighten cover layer tape , pass excess tape into storage box .
