560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine
560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine

Large Image :  560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine Get Best Price

Product Details:

Place of Origin: Guangdong, China
Brand Name: ME-5600 off-line PCB/PCBA Cleaning Machine

Payment & Shipping Terms:

Price: $35,000.00/sets 1-1 sets
Packaging Details: off-line PCB/PCBA Cleaning Machine package+plywood case
Supply Ability: 100 Set/Sets per Month off-line PCB/PCBA Cleaning Machine
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
Condition: New Use: PCBA Cleaning Machine
Cleaning Process: PCBA Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
Industry Used: Electronic Industry Material: PCBA Cleaning Machine
Power: Pneumatic Stencil Cleaner Dimension(L*W*H): L1300 X W1200 X H850(mm)
Warranty: 1 Year Max. Pressure: PCBA Cleaner
Marketing Type: PCBA Cleaner Machinery Test Report: PCBA Cleaner
Video Outgoing-inspection: PCBA Cleaner Warranty Of Core Components: PCBA Cleaner
Core Components: PCBA Cleaner Key Selling Points: PCBA Cleaner
Weight (KG): 600 Kg Product Name: Off-line PCB/PCBA Cleaning Machine
Power/Air Supply: AC380V/50A/50HZ,30KW,0.5Mpa Cleaning Basket Size: L610 X W560 X H100 (mm) X2 Layers
Spray Tank Capacity: 17L Concentrate Capacity: 32L
Dilution Capacity: 60L Clean Time: 5~20min
Rinse Time: 1~2min/times Skype: Sensenhenhao
Whatsapp/wechat: +8613424013606 Port: Shenzhen

 560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine

skype:sensenhenhao,whastapp/wechat:+8613424013606



off-line  PCB/PCBA Cleaning Machine Description:

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine is an off-line PCBA cleaning mahcine. It is a compact, energy-saving and environmental protection machine.

SME-5600 is used to wash off flux residual, solder balls, partichles on PCBA, such as: rosin flux, non-clean flux,water-soluble flux.Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.



SME-5600 advantages:


1. Throughly clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.

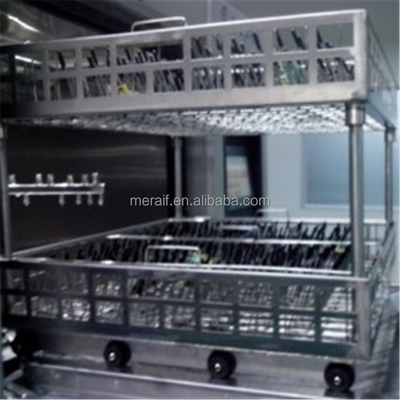

2. 2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.

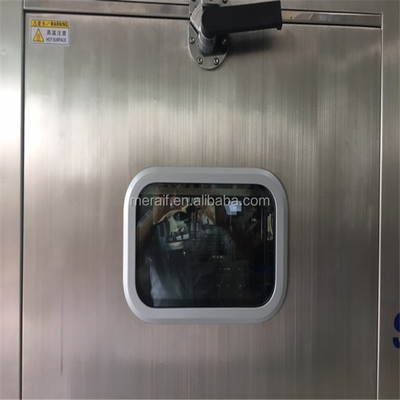

3. All processes are visible through a large observation window.


4 .Easy operation interface, quick setting clean parameters. Different passwords can be set.


5. Inner filter makes liquid used repeated.



6.Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.


7. The remaining liquid in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.


8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.


9. Totally SUS304 structure,  solide, acid and alkali corrision-proof


SME-5600 spec:



ITEM SPEC
Cleaning basket size L610xW560xH100mmx 2layers
Diluent liquid tank capacity 60L
Spray liquid tank capacity 18L
Concentrate tank capacity 30L
Cleaning time 5~20min
Rinse time 1~2 min/times
Rinse times 1~10times
Dry time 10~30min
Diluent liquid heat temp room temp ~60ºC
PCB dry time room temp~99ºC
Resistivity range 0~18MΩ
Liquid filter 0.2um
DI water filter 0.2um
Air filter 10um
Vent size φ76XH50(mm)
Power supply AC380, 3 Phases, 50/60Hz, 30KW
Air supply 0.5Mpa, 400L/Min
Machine size L1300xW1200x1850(mm)
Machine weight 600KG

Customer Question & Answer

Q1: What is the cycle time of SME-5600 batch cleaning  machine?

A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.



Q2: What liuqid can be used in SME-5600 to clean PCBA?

A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid  wash, DI water rinse.



Q3: Have many pcbas can SME-5600 clean in one cycle?

A3: L200*W100mm  size PCBA for example, it can clean 30~40pcs.



Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?

A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.


Comparison pictures before clean and after clean:

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 0560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 1

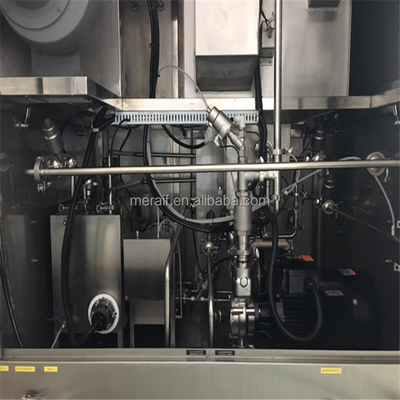

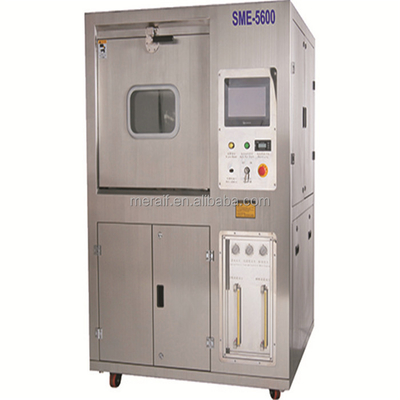

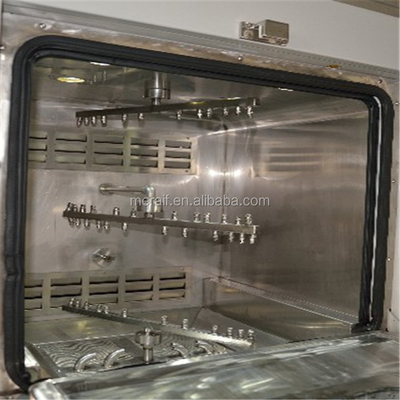

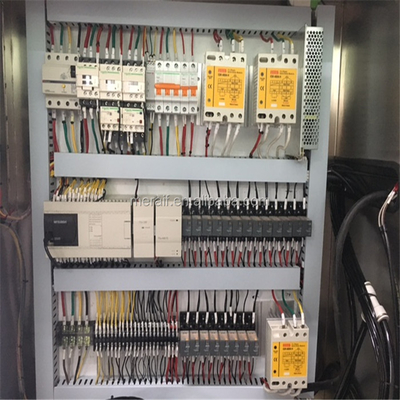

off-line  PCB/PCBA Cleaning Machine  picture show:

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 2560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine 3
