1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE

1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE

1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE
1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE

Large Image :  1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE Get Best Price

Product Details:

Place of Origin: Guangdong, China
Brand Name: ME-1200 STENCIL AQUEOUS CLEANING MACHINE

Payment & Shipping Terms:

Price: $30,000.00 - $80,000.00/sets
Packaging Details: STENCIL AQUEOUS CLEANING MACHINE packing with vacuum wooden case
Supply Ability: 100 Set/Sets per Month STENCIL AQUEOUS CLEANING MACHINE
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
Condition: New Use: Stencil Cleaning Machine
Cleaning Process: Stencil Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
Industry Used: Electronic Industry Power: Pneumatic Stencil Cleaner
Dimension(L*W*H): L1300*W1400*H1970mm Warranty: 1 Year
Max. Pressure: Stencil Cleaning Machine Marketing Type: Stencil Cleaning Machine
Core Components: Stencil Cleaning Machine Key Selling Points: Stencil Cleaning Machine
Weight (KG): 1000 Kg Product Name: STENCIL AQUEOUS CLEANING MACHINE
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Stencil Size:: 1200*750*40 Mm (L*W*T) As Max Wash Liquid:: Water-based Solder Paste Liquid
Rinse Time:: 1~2min Wah Time: 3~6min: Dry Time: 3~6min
Liquid/water Filter:: 1um/1um Real Time Compressed-air Supply:: 0.5~0.7Mpa,200~400L/min
Dry:: Hot Air Blow Dry Port: Shenzhen

1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE

skype:sensenhenhao,whastapp/wechat:+8613424013606



  As a 1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE. SME-1200  is  a big size, unstandard aqueous liquid spray stencil cleaning machine.



  SME-1200 use aqueous liquid to clean, DI water(DM water )to rinse, hot air blow dry; Liquid and water can add and discharge automatically.



  Multiple application: solder paste stencil, red glue stencil, 3mm thickness red glue cooper stencil, 3mm red glue plastic stencil, mis-printed PCB and squeegees.



  SME-1200 cleaning process: water-based liquid wash--DI water rinse--hot air blow dry.

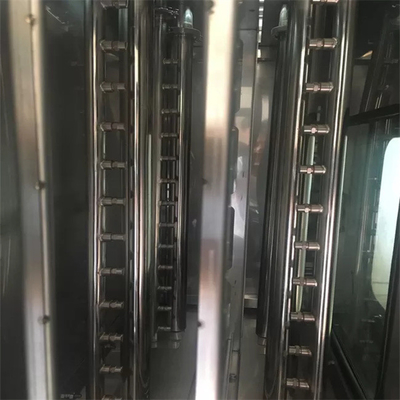

  SME-1200 has the stable mechanism structure--4 cleaning spray rods and 4  air knives fixed at the left and right side of stencil; stencil move back and forth in the cleaning cabinet..

STENCIL AQUEOUS CLEANING MACHINE Features:


1.  All kinds of SMT  solder paste stencil, red glue cooper stencil/ plastic stencil, misprint PCB and squeegees.
2.  4 spray rods and 4 air knives fixed while stencil moves back and forth , relaible and stable mechanism.
3.  Quick wash and rinse process.
4.  Machine process is visible through a large observation window.
5.  Real-time liquid and DI water filter system.
6.  Compressed air blow out remain liquid in pipes and pump. This function saves liquid.
7.  SUS304 stainless steel material, acid and alklic corrision protection .
8.  PLC control and TP English operation interface.

9.  Liquid temperature, liquid wash time ,DI water rinse time ,DI water temperature, hot air dry time and temperature can be set and modified.

10. Liquid and DI water auto add and discharge fuction.

11. Liquid and DI water filter timely repalce alarm function.

12. World famous Schneider,Mitsubishi, SMC, CKD, Omron electric and pueumatic parts.



STENCIL AQUEOUS CLEANING MACHINE  Spec:

S/N Item SPEC Remarks
1 stencil size L1200*W750*T40mm
2 wash time 3~5min
3 rinse time 1~2min
4 dry time 3~6min
5 wash liquid temp room temp~60℃
6 DI water temp room temp~60℃
7 hot air temp room temp~100℃
8 liquid tank/water tank capacity 60L/60L
9 liquid/water spray pressure 4~5kg/cm2
10 liquid type water-based liquid
11 Water type DI water or DM water
12 liquid/water filter precision 1um/1um
13 liquid heat power 9KW
14 water heat power 9KW
15 hot air heat power 6KW
16 electric power and air supply AC380V,3P,50/60Hz,28KW,0.5Mpa
17 Machine size L1300*W1850*H1970mm
18 Machine weight 1000kg



Questions and Answers:

Q1. Why choose this electric stencil cleaning machine?

A1:  Because SME-1200 use water-based liquid which is safety, environmental-protection and easy to rinse.



Q2: Can SME-1200 clean 3mm thick red glue printed cooper stencil and palstic mask?

A2: Yes, it can because its powerful cleaning pressure can penatrate very little holes in the stencil and mask to wash the red glue out.



Q3: Is it very dry after wash, rinse and dry process?

A3: Yes, it is very dry because hot air temperture and air blow result.



Q3: How SME-1200 clean mis-printed PCB, squeegees and frameless stencils?

A4: By using our mis-printed PCB fixture, squeegee fixture, frameless stencil fixture.

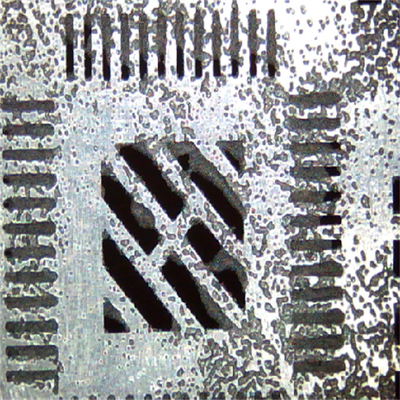

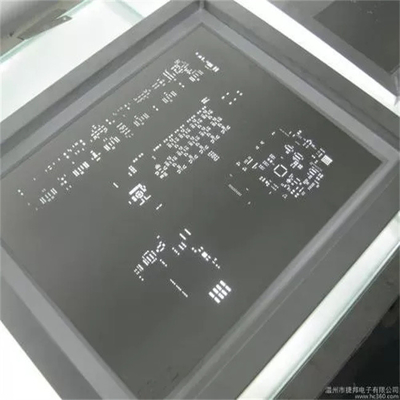

Comparisonpictures before and after cleaning:

1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 01200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 1

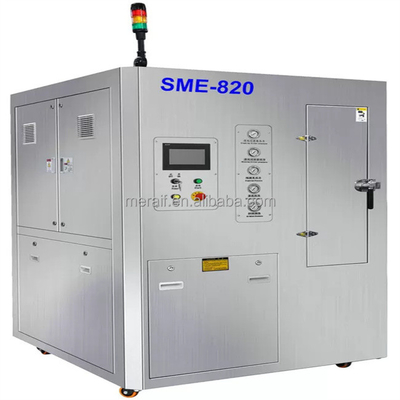

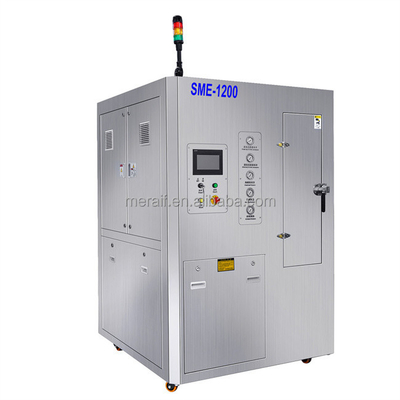

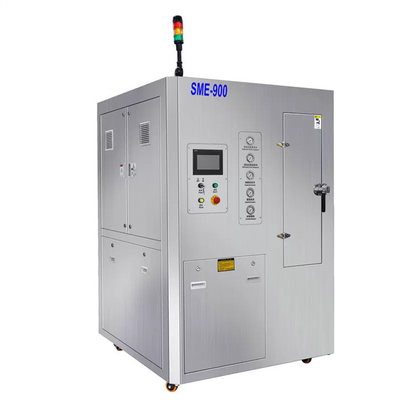

STENCIL AQUEOUS CLEANING MACHINE  picture show:

1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 2

1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 31200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 41200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 5







1200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 61200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 71200*750 MM BIG SIZE STENCIL AQUEOUS CLEANING MACHINE PLC CONTROL SPRAY CLEANING MACHINE 8
