MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water

MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water

MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water
MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water

Large Image :  MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water Get Best Price

Product Details:

Place of Origin: Guangdong, China
Brand Name: ME-820 electric stencil cleaning machine

Payment & Shipping Terms:

Price: $30,000.00 - $80,000.00/sets
Packaging Details: electric stencil cleaning machine packing with vacuum wooden case
Supply Ability: 100 Set/Sets per Month Printed Stencil Cleaning Machine
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
Condition: New Use: Stencil Cleaning Machine
Cleaning Process: Printed Stencil Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
Industry Used: Electronic Industry Power: Pneumatic Stencil Cleaner
Dimension(L*W*H): 1400*1470*2050( L*W*T) Mm Warranty: 1 Year
Max. Pressure: Stencil Cleaning Machine Marketing Type: Stencil Cleaning Machine
Core Components: Stencil Cleaning Machine Key Selling Points: Stencil Cleaning Machine
Weight (KG): 820 Kg Product Name: Electric Stencil Cleaning Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Stencil Size:: 29*29*1.57 Inches (L*W*T) As Max Wash Liquid:: Water-based Solder Paste Liquid
Rinse Time:: 1~2min Wah Time: 3~6min: Dry Time: 3~6min
Liquid/water Filter:: 1um/1um Real Time Compressed-air Supply:: 0.5~0.7Mpa,200~400L/min
Dry:: Hot Air Blow Dry Port: Shenzhen

MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water

skype:sensenhenhao,whastapp/wechat:+8613424013606

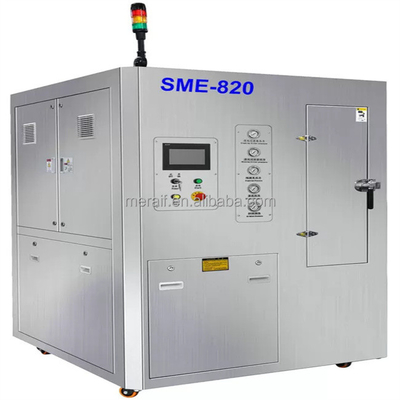

SME-820 Stencil Cleaning Machine 80L Automatic Solder Paste Printed Stencil Cleaning Machine  is an automatic, industrial + PLC controlled and MES system connected smart equipment. SME-820 has MES modular and MES port and can provide machine parameters to customers' MES system.



SME-820 Multi-application range: solder paste stencil, red glue stencil, 3mm thickness red glue cooper stencil, 3mm red glue plastic stencil, mis-printed PCB and squeegees.



Automatic wash process: water-based liquid wash--DI water rinse--hot air blow dry.



Most stable mechanism structure--4 cleaning spray rods and 4  air knives fixed at the left and right side of stencil; stencil move back and forth in the cleaning cabinet..

electric stencil cleaning machine Features:

1. Process: water-based liquid wash + DI water rinse+ hot air blow dry process.
2. Multi-use: solder paste /red glue stencil, red glue cooper stencil/ plastic mask, mis-printed PCB, squeegee.
3. Stable mechanism: stencil moves back and forth in the wash cabinet while spray rods and air knives fixed.-- make the machine stable and relaible.
4. Excellent cleaning result: up to 4~5kg/cm2 spray pressure and high volume nozzles, very good cleaning result.
5. Real time filtrer system: liquid and water can be recirculated used, no solder balls comes back to stencil surface again. Especially for precise stencil.
6. Less distance, more efficient:4 spray rods and air knives fixed on left and right side of stencil, 750mm long stencil move distance reduce to 420mm.
7. Pressure meters : cleaning liquid / rinse water/liquid filter/water filter pressure meters on front panel,easy to watch and monitor them.
8. SUS304 stainless steel structure:alkalic and alkacid corrision protection. All pipes, fIlter barrel and pumps are sus304 material, no plastic pipes at all.

9. One key easy operation: just push “start” key, all process are running automatically according to program setting.
10. Visible: window on right side of clean chamber, all process are visible.
11. Liquid cost down: Compressed air blow out remain liquid in pipes and pumps after cleaning process , save up to 50% liquid.
12. PLC control, TP English operation interface: clean time, temp;rinse time, temp; dry time, temp...parameters easy to set and modify.
13. Auot liquid and water add and discharge function:Equipped with air pump liquid/water add and discharge automatically.
14. World famous, high quality parts from Scheidier, Mitsubish, Omron, SMC, CKD.
15. LS protection: 4 levels liquid and water levle switch, low level to protect heater, pumps,M and H level remind to add liuqid or water,HH level to protect overflow.
16. Heaters temp control: PID calculattion , ±3°accuracy,over temp protection.
17. Water open loose and close loop: both this 2 loops can be choosed to use.
18. Excellent software function: auot/manual mode, I/O ports, paramenters setting,filter replace reminding...

electric stencil cleaning machine Spec:

S/N Item SPEC Remarks
1 stencil size L29*W29*T1.57inches
2 wash time 3~5min
3 rinse time 1~2min
4 dry time 3~6min
5 wash liquid temp room temp~60℃
6 DI water temp room temp~60℃
7 hot air temp room temp~100℃
8 liquid tank/water tank capacity 60L/60L
9 liquid/water spray pressure 4~5kg/cm2
10 liquid type water-based liquid
11 Water type DI water or DM water
12 liquid/water filter precision 1um/1um
13 liquid heat power 9KW
14 water heat power 9KW
15 hot air heat power 6KW
16 electric power and air supply AC380V,3P,50/60Hz,28KW,0.5Mpa
17 Machine size L1300*W1400*H1970mm
18 Machine weight 720kg



Questions and Answers:

Q1. Why choose this electric stencil cleaning machine?

A1:  Because SME-860 use water-based liquid which is safety, environmental-protection and easy to rinse.



Q2: Can SME-860 clean 3mm thick red glue printed cooper stencil and palstic mask?

A2: Yes, it can because its powerful cleaning pressure can penatrate very little holes in the stencil and mask to wash the red glue out.



Q3: Is it very dry after wash, rinse and dry process?

A3: Yes, it is very dry because hot air temperture and air blow result.



Q4: How SME-860 clean mis-printed PCB, squeegees and frameless stencils?

A4: By using our mis-printed PCB fixture, squeegee fixture, frameless stencil fixture.

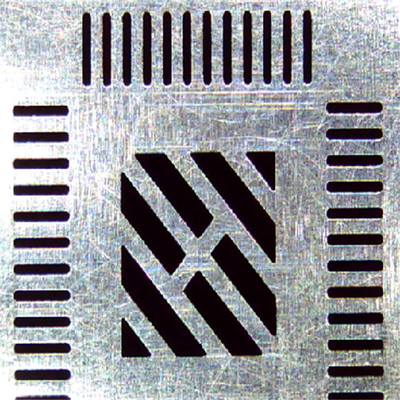

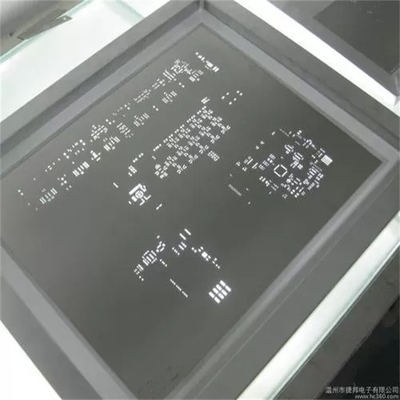

Comparisonpictures before and after cleaning:

MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 0MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 1

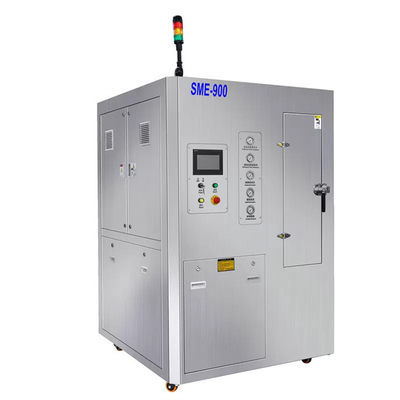

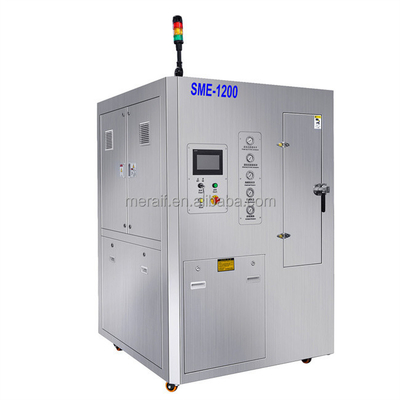

electric stencil cleaning machine  picture show:

MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 2

MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 3

MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 4MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 5MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 6







MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 7MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 8MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water 9
