Warranty: | 1year | Customized Support: | Thermal Profiling For Reflow Oven |
---|---|---|---|
Product Name: | Solder Reflow Oven Profiling | Whatspp: | +8613424013606 |
Wechat: | JoyLY0322 | Skype: | Sensenhenhao |
Application:: | Temperature Inspection In SMT Reflow Wave Oven | Temperature Range:: | -200℃~370℃ |
Battery Type:: | Rechargeable Lithium Polymer Battery | Storage Capacity:: | 4,000,000 Points |
Sampling Interval:: | 0.05s To 86400s, Set As Per Requirements | Accuracy:: | ±0.5 ℃ |
Port: | Shenzhen |

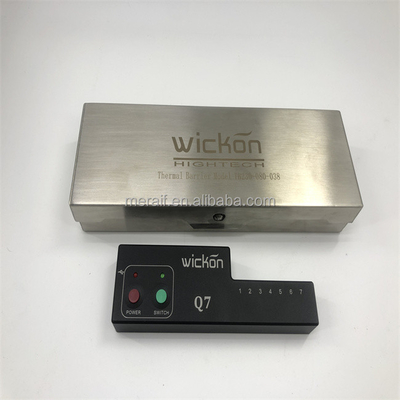

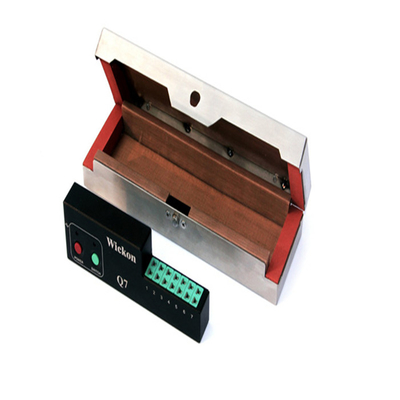

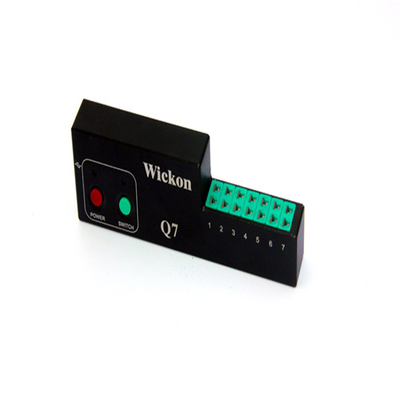

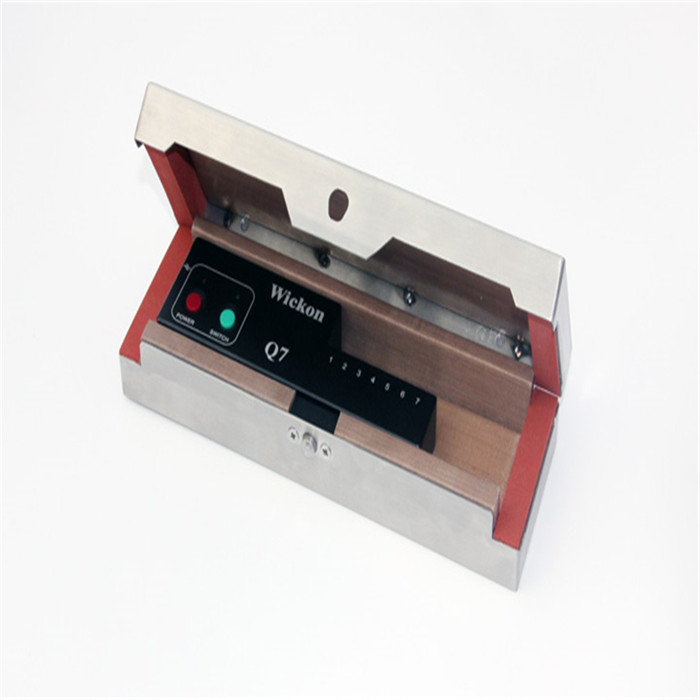

Wickon Q7 Solder Reflow Oven Profiling SMT thermal Profiler Wickon
WhatsApp:+8613424013606,skype:sensenhenhao wechat:Joyly0322
Thermal Profiling for Reflow Oven Features:
1)Can analyze high / low temperature, temperature and time, calculate the slope, rise / fall computing
and different peak and peak and poor;
2) can be calculated heating, holding time, cooling rate and heat treatment parameters;
3) temperature curve can be drawn throughout the process;
4) temperature uniformity can be directly printed test report or electronic file output test reports;
5) simulation curve function, process optimization, test date and time
Output F) company name, product name, and notes information processing.
6) Name:Professional Wickon Thermal Profiler Thermocouple Profiler SMT Thermal Profiling for Reflow Oven
Fast, accurate and economical process temperature profiling
wickon thermal profiler Hardware Advantages
1.With MINI appearance, with narrow product, within the industry as the most thin, highly integrated chip design, more advanced
technology; the test is low, higher high-temperature furnace through a narrow, application industry and the wider field;
2.The full realization of USB communication and USB charging function, truly no need to deliberately charging 365 days;

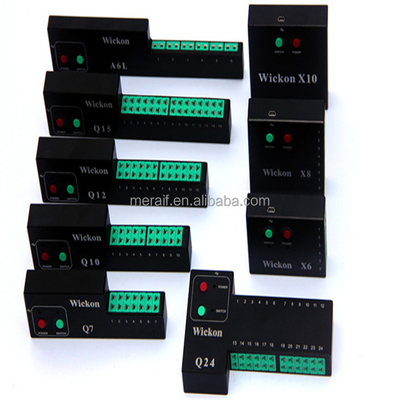

3.WICKON temperature tester entire family includes series X6.X8.X10.A6L.Q7.Q10.Q12.Q15.Q24 ,Q32 and so on products. Model is
complete, up to the maximum number of channels as much as 32, the most in the industry.
4.The real use of FLASH chip, can automatically save data in case of any unexpected power outages;
5.All the chips inside the instrument effectively military-grade temperature up to 105 degrees
6.British with green LABFACILITY thermocouple plug, the reaction speed of 0.1 seconds, more accurate
wickon thermal profiler Software Advantage
1.Has ISO9000 file filled traceability, easily filled history temperature curve, superuser privileges may be arbitrarily
correction curve
2.PWI analysis comes at no extra additional costs, easy set reflow process engineers to optimize the process parameters according
to the guidelines PWI
3.Craft editing window highly integrated, operating in a window you can edit all process technology, without switching between
multiple windows settings, operation more simple
4.You can simultaneously test 24 sets of data, and then import the PC computer together, one by one arbitrary curve analysis,
saving testing time
5.The software comes with data import and export functions to facilitate data analysis and statistical curve
6.Powerful component features, has a curved cut, add and modify the temperature of the line. Between any two points and two data
analysis, information edit notes, and save as curve editing
7.Wave energy test automatic partitioning, automatic on PROFILE display maximum temperature and preheat peak, automatic peak
analysis flatness
Thermal Profiling for Reflow Oven Specification:
Project | Description |
Commodity | temperature curve tester |
Temperature range | -200℃~370℃ |
Operating temperature | 0~105℃ |
The total storage capacity | 4,000,000points |
Battery | Without deliberately charging, automatic replenishment capacity, the real 365 without charge |
Number of Channels | 4,6,7,8,10,12,15,24 |
Sampling interval | 0.05s~86400s( Can be set according to the testing requirements ) |
Thermocouple Types | K |
Accuracy | ±0.5 ℃ |
Battery Type | Rechargeable lithium polymer battery |
Insulated box Weight (kg) | 0.52KG |
Insulated box size (mm):L*W*H | 145mm*90mm*36mm |

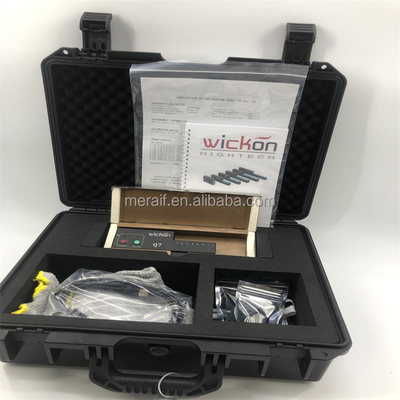

Configuration List:
1: Wickon box
2: Manual
3: insulation box
4: Data logger
5: High temperature gloves
6: data cable
7: Insight Software
8: Thermocouple
9: The factory calibration report
Wickon Q7 Temperature Profiling
