DEK E printer SMT Stencil Printer DEK printer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | DEK Printer |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
| Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
| Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
| Lead Time: | 7-30days | Port: | Shenzhen |
DEK E Seriels SMT Stencil Printer DEK printer
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
DEK printer:
DEK E Seriels SMT Stencil Printer
E-Quality
DEK’s experienced printing specialists have developed an innovative platform for E by DEK with high-quality components, sophisticated construction, and modular design that guarantees a stable and reliable printing process even for the latest fine-pitch applications.
E-Performance
The E by DEK delivers E-Performance with:
8 seconds core cycle time
Fast setup changeovers
High repeatability
With the shortest cycle times and the fastest product changeovers paired with maximum repeat accuracy, the E by DEK sets new standards in the mid-speed segment.
E-Facts
Clearly structured, and each number provides a strong argument: The most important facts and figures on the E by DEK.
* Alignment qualifications include board loading/unloading, board clamping, camera/table movement. Capability value is calculated with 3rd-party QC-Calc software.
# Machine capability comprises board loading/unloading, board clamping, camera/rising table movement and print process. The capability value is calculated with 3rd-party QC-Calc software.
E By DEK
Flexibility at its best!
Each SMT factory has its own special challenges. That is why we have developed Options for the E by DEK that allow custom tuning with perfectly coordinated modules for printing results that will make your customers happy and raise your SMT production to a new level.
E by DEK Options for all your applications:
Throughput
Quality
Flexibility
Long and heavy circuit boards
| Alignment | > 2.0 Cmk @ ± 12.5 μm (± 6 sigma) |
| System alignment capability | > 2.0 Cmk @ ± 25 μm (± 6 sigma) |
| Optimum core cycle time | 8 seconds |
| Substrate size | 50 mm (X) x 40.5 mm (Y) to 620 mm (X) x 508.5 mm (Y) |
| Operating System | Windows 7 Embedded |
| Squeegee pressure mechanism | Software-controlled, motorized with closed loop feedback |
| Stencil positioning | Semi-auto stencil load with drip tray |
| Understencil cleaning | Interchangeable understencil cleaner (IUSC), fully programmable with wet/dry/vacuum wipe |
| Adjustable-width stencil mount (AWSM) | Frame variants - fully adjustable to accommodate frame sizes in the range of 381 mm to 736 mm |
| Substrate thickness | 0.2 mm to 6 mm |
| Substrate weight (maximum) | 6 kg |
| Substrate warpage | Up to 7 mm including substrate thickness |
| Substrate fixture | Over the top clamp Edge clamp Foil-less clamp Vacuum |
| Temperature & humidity sensor | Monitoring of the process environment |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup

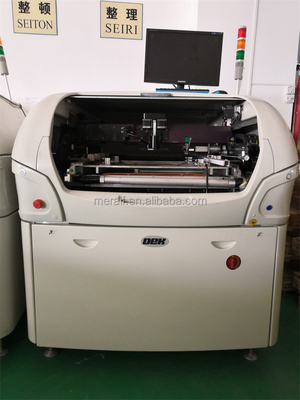

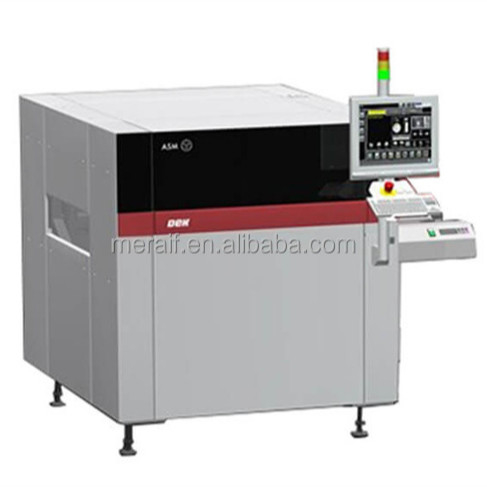

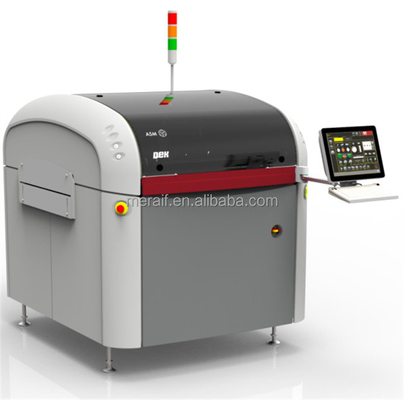

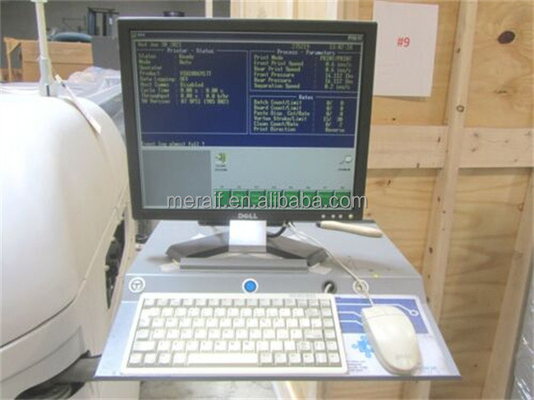

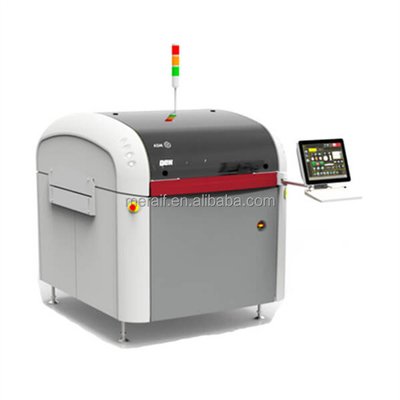

DEK printer picture show
