SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA
SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA

Large Image :  SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: SMT AOI machine
Model Number: SAKI saki bf-10z AOI machine

Payment & Shipping Terms:

Price: $5,500.00 - $55,000.00/pieces
Packaging Details: SMT SAKI saki bf-10z packing with vacuum wooden case
Supply Ability: 1000000 Piece/Pieces per Month SMT SAKI saki bf-10z
Detailed Product Description
Condition: Used Weight (KG): 200
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: SMT SAKI Saki Bf-10z
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
PCB Thickness:: 0.6 - 2.5mm Operating System: Windows XP
Resolution: 10μm Appicable PCB Size: 50*50 - 250*330mm
Power Supply: 100 - 120V / 200 - 240V ±10%; 50 / 60Hz Ondition:: Used
Dimension: 580*850*452mm Port: Shenzhen

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

 SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 0

SMT SAKI saki bf-10z Specification:

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 1

Model

SAKI 2D AOI BF-10Z

Resolution

10μm, 20μm (Selective Resolution System)

Board Size

50 W x 60 L - 686 W x 870 L mm

(1.97 W x 2.36 L - 27 W x 34.25 L in.)



Board Thickness

0.6 - 5.0 mm (0.02 - 0.196 in.)

Board Warp

2 mm (0.078 in.) or less

PCB Clearance

Top: 40mm, 1.57in. Bottom: 40mm, 1.57in

Rotated  Component Support

Available for 0 - 359°rotation (unit of 1°)

Inspection Categories

Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Absence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function.

Tact Time*1 *2

10μm : Approx. 63 sec.

20μm : Approx. 39 sec

Image Scanning Time*1

10μm : Approx. 15 sec. x 3

20μm : Approx. 8 sec. x 3

Camera (Image Processing)

Line color CCD camera

Lighting

LED lighting system

Transfer Conveyor Method

Flat belt  transfer

Transfer Conveyor Height

880 - 920 mm (34.65 - 36.22 in.)

Transfer Conveyor Width Adjustment

Manual

Operating System

Windows XP English Version

Optional System

BF-Editor / BF-RP1 / BF-Monitor / BF-View

Optional

2D Barcode Recognition, Journal Printer, Automatic Transfer Conveyor Width Adjustment

Electric Power Requirement

Single phase ~100-120V/200V-240V+/-10%, 50/60Hz, 800VA

Air Requirement

0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM

Usage Environment

15°C(59F) - 30°C(86F) / 15 - 80% RH

(Non-condensing)

Noise Level

58.3dB

Dimensions W x D x H

1500 W x 1360 D x 1380 H mm (59.06 W x 53.54 D x 54.33 H in.)

Weight

Approx. 530 Kg (1168 lbs)



Successful Experience:

Meraif's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

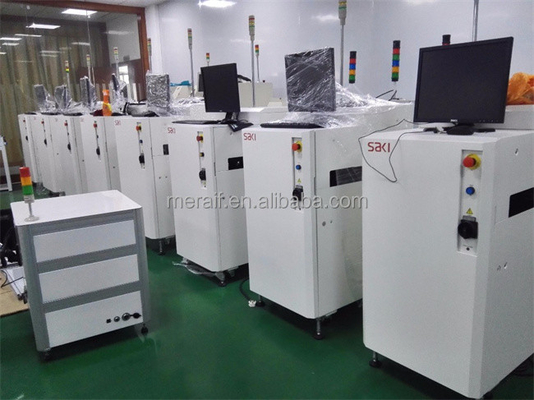

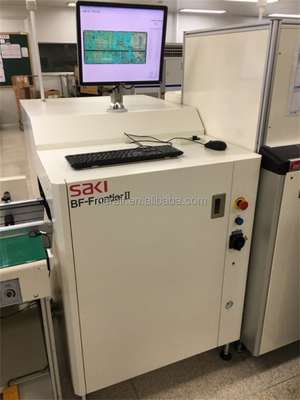

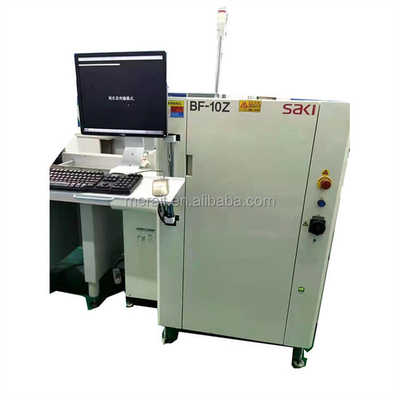

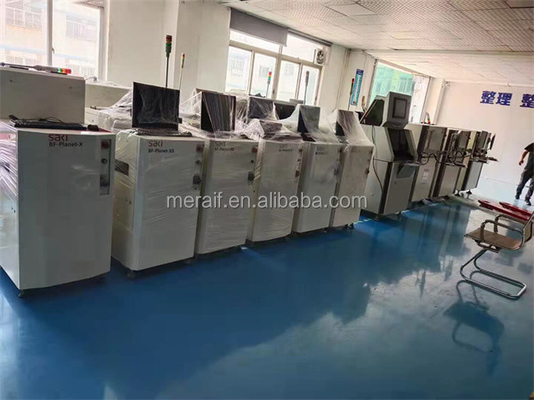

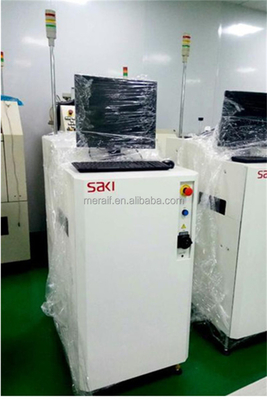

SMT SAKI saki bf-10z picture show

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 2SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 3SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 4SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 5SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 6SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 7SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 8SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 9

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 10SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 11SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 12

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 13

SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 14SMT SAKI saki bf-10z AOI machine SMT machine line for electronic PCBA 15
