Product Details:

Place of Origin: Japan
Brand Name: DEK Stencil Printer
Model Number: DEK NeoHorizon printer

Payment & Shipping Terms:

Price: $60,000.00 - $1,000,000.00/pieces
Packaging Details: DEK PCB Screen Printer
Supply Ability: 1000000 Piece/Pieces per Month DEK PCB Screen Printer
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: DEK PCB Screen Printer
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.





DEK PCB Screen Printer:

DEK NeoHorizon
With its modular design, the latest generation of our powerful screen printers is customizable for any customer-specific or application-specific requirements. Clamping systems, conveyors, tooling, paste management, verification – the DEK NeoHorizon can be equipped and/or retrofitted with many powerful and precision-enhancing options. All this flexibility can be controlled easily and comfortably with the leading printer software: DEK Instinctiv™ V9.
Two basic printer configurations are available: The DEK NeoHorizon 03 iX with the DEK HawkEye 750 camera system, semi-automatic stencil load and the IUSC understencil cleaning system features a core cycle time of 8.0 seconds and a machine accuracy of ±20 µm @ 2 Cmk for use in high-mix environments. The DEK NeoHorizon 01 iX with its core cycle time of 6,5 seconds and enhanced machine accuracy of ±15 µm @ 2 Cmk was designed for applications with particularly high demands on quality and throughput, for example for 0201 (metric) components. This configuration is equipped with the high-resolution DEK HawkEye 1700 camera, a fully automatic stencil alignment system, and the high-end DEK Cyclone understencil cleaning system.
Back-to-back: Single-track, dual-track, and back to single-track
The innovative design of the new printer and its especially robust cover make it possible to perform all control and maintenance operations from the front of the machine. As a result, you can now position two DEK NeoHorizons back-to-back for a dual-track solution that’s smart, flexible and future-proof. The two machines can nevertheless be configured and operated independently of each other. And when the dual-track solution is no longer needed, you simply separate the two printers and use them on separate lines again. The perfect combination of flexibility and investment protection.

Technical Data:

Standard configuration

DEK NeoHorizon 01iX

DEK NeoHorizon 03iX

Machine alignment capability

± 12.5 μm @ 2.0 Cmk (6 sigma)

± 12.5 μm @ 2.0 Cmk (6 sigma)

Machine alignment accuracy

± 15 μm @ 2.0 Cmk (± 6 sigma)

± 20 μm @ 2.0 Cmk (± 6 sigma)

Process alignment accuracy

± 20 μm @ 2.0 Cpk (6 sigma)#

± 25 μm @ 2.0 Cpk (6 sigma)#

Standard cycle time

6.5 seconds + process

8 seconds + process

Maximum printing surface

510 mm (X) × 508,5 mm (Y)

User interface

Touchscreen, keyboard and trackball,
DEK Instinctiv V9 software

Camera

DEK HawkEye 1700 digital camera
with 2-way LED illumination

DEK HawkEye 750 digital camera
with 2-way LED illumination

Squeegee adjustment

Motorized with squeegee pressure feedback

Stencil loading

Automatic, incl. squeegee drip catcher

Semi-automatic,incl. squeegee drip catcher

Stencil alignment

Motorized (actuators); aligned on
X- and Y-axis and rotation

Motorized (actuators); aligned in
X- and Y-axis and rotation

DEK ProFlow

Optional

Understencil Cleaning

DEK Cyclone 300 mm/400 mm/515 mm

DEK IUSC 300 mm/400 mm/520 mm

Technical documentation

Printed documents: User manual, installation instructions, circuit diagrams.
Technical instructions and videos that explain all operating steps are preinstalled.

Compressed air supply

5-8 bar at ~5 litres/minute

Power supply

100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz

Weight

Approx. 690 kg depending on selected options

* The machine and repeat accuracy check will be conducted using production-typical process variables.  The repeat accuracy rating

comprises the printing speed, squeegee operation, table movements and camera movements.



Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

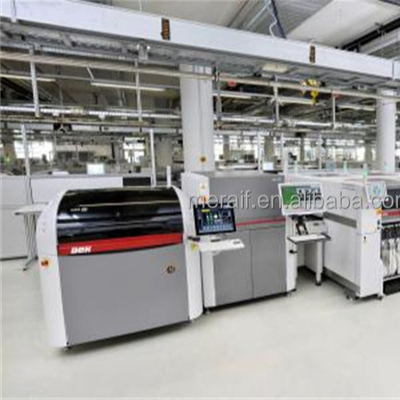

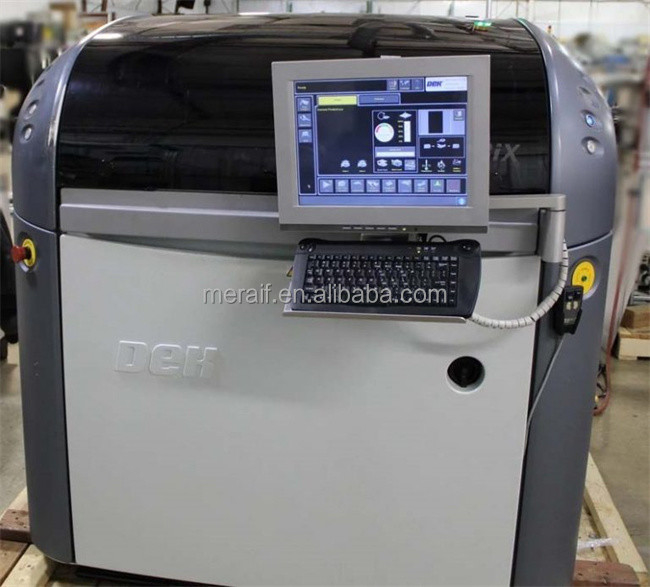

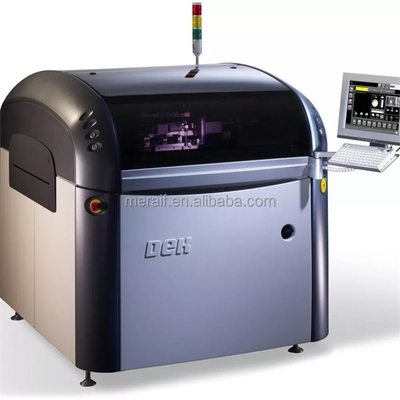

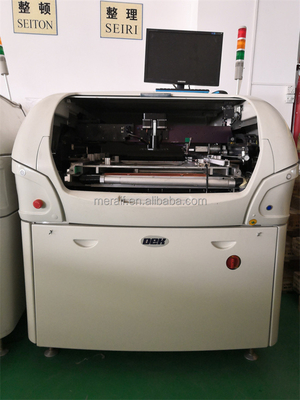

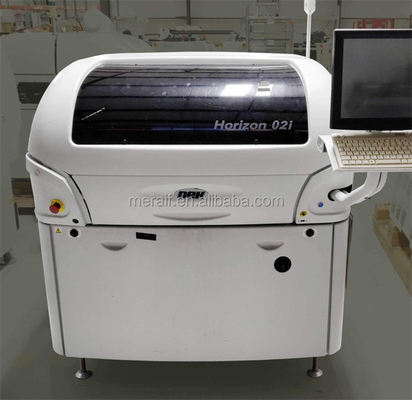

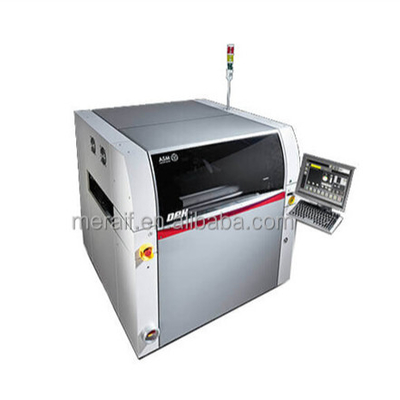

DEK PCB Screen Printer picture show

smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 0

smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 1smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 2smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 3smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 4



smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 5smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 6smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 7

smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 8

smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 9smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer 10
