Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print
Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print

Large Image :  Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: DEK Stencil Printer
Model Number: Dek horizon 8 printer

Payment & Shipping Terms:

Price: $60,000.00 - $1,000,000.00/pieces
Packaging Details: Automatic Dek horizon 8 printer
Supply Ability: 1000000 Piece/Pieces per Month Automatic Dek horizon 8 printer
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: Automatic Dek Horizon 8 Printer
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



Automatic Dek horizon 8 printer :



DEK Horizon 8
DEK’s Horizon platforms offer a comprehensive array of sophisticated features as standard, including optimised printer frame technology, fast product changeover, 2 Cpk print process capability and 6-sigma production performance. The  DEK HawkEye 750 camera system, semi-automatic stencil load and the understencil cleaning system features a core cycle time of 12.0 seconds and a machine accuracy of ±25 µm @ 2 Cmk for use in high-mix environments. The 12-second core cycle timeDEK camera Instinctiv T V9 user interface ISCAN™ Intelligent Scalable Control Area Network .Full size stencil frame capacity.Horizon 08 – Best-in-class performance Features:
Process alignment capability 2 Cpk @ +/-25 microns 6-Sigma
Machine alignment capability 2 Cpk @ +/- 12.5 microns 6-Sigma

Standard configuration

DEK Horizon 08 EE

Machine alignment capability

>2.0 Cpk @ +/- 12.5µm, (±6 Sigma) *

Process Alignment Capability

>2.0 Cpk @ +/- 25µm, (±6 Sigma) *

Standard cycle time

10 seconds + process

Maximum printing surface

508 mm (X) × 508 mm (Y)

User interface

Touchscreen, keyboard and trackball, DEK Instinctiv V9 software

Camera

DEK HawkEye 1700 digital camera with 2-way LED illumination

Squeegee adjustment

Motorized with squeegee pressure feedback

Stencil loading

Automatic, incl. squeegee drip catcher

Stencil alignment

Motorized (actuators); aligned on X- and Y-axis and rotation

DEK ProFlow

Optional

Understencil Cleaning

DEK Cyclone 300 mm/400 mm/515 mm

Technical documentation

Printed documents: User manual, installation instructions, circuit diagrams.
Technical instructions and videos that explain all operating steps are preinstalled.

Compressed air supply

5-8 bar at ~5 litres/minute

Power supply

100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz

Weight

Approx. 690 kg depending on selected options

* The machine and repeat accuracy check will be conducted using production-typical process variables.  The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

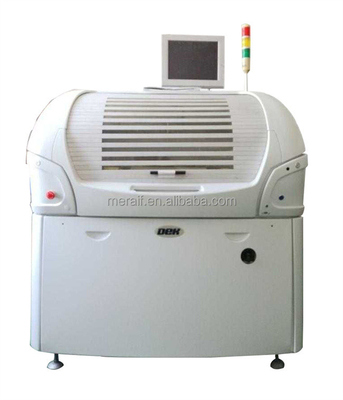

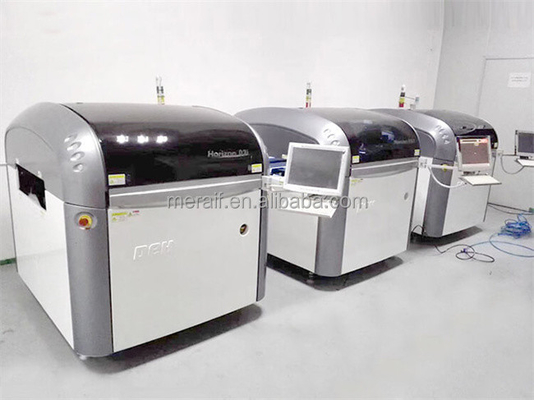

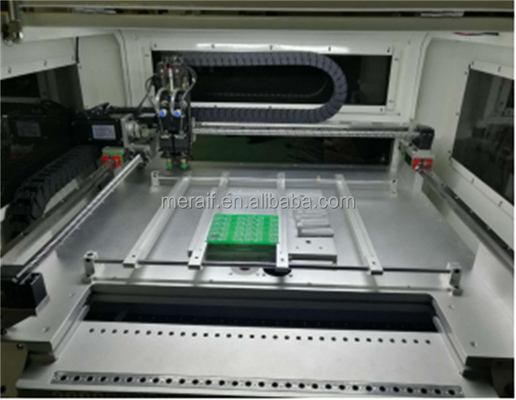

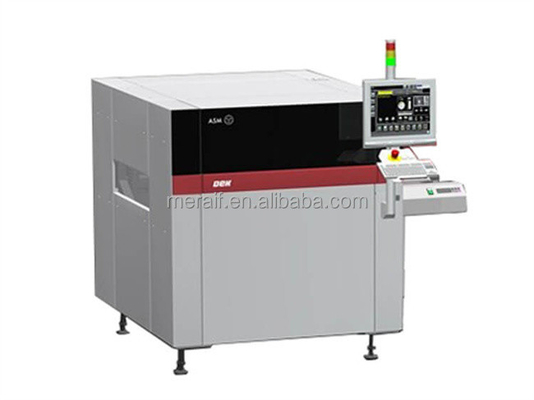

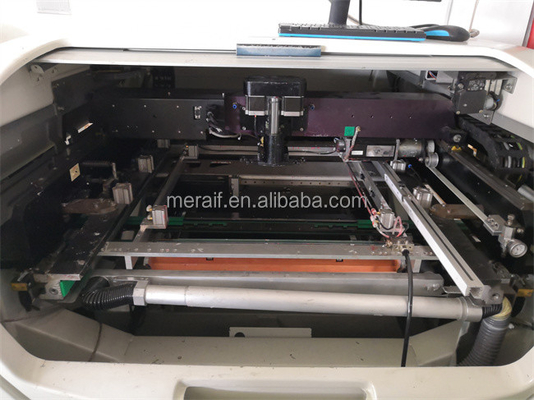

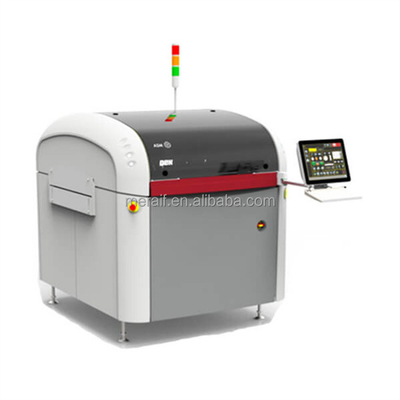

Automatic Dek horizon 8 printer  picture show

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 0

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 1Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 2Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 3Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 4



Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 5Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 6Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 7

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 8

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 9Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 10
