Product Details:
Payment & Shipping Terms:
|
Condition: | New | Weight (KG): | 1000 |
---|---|---|---|
Showroom Location: | None | Video Outgoing-inspection: | Provided |
Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
Warranty Of Core Components: | 1 Year | Core Components: | PLC |
Warranty: | 1 Year | Product Name: | Automatic Solder Paste Printer |
Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
Lead Time: | 7-30days | Port: | Shenzhen |

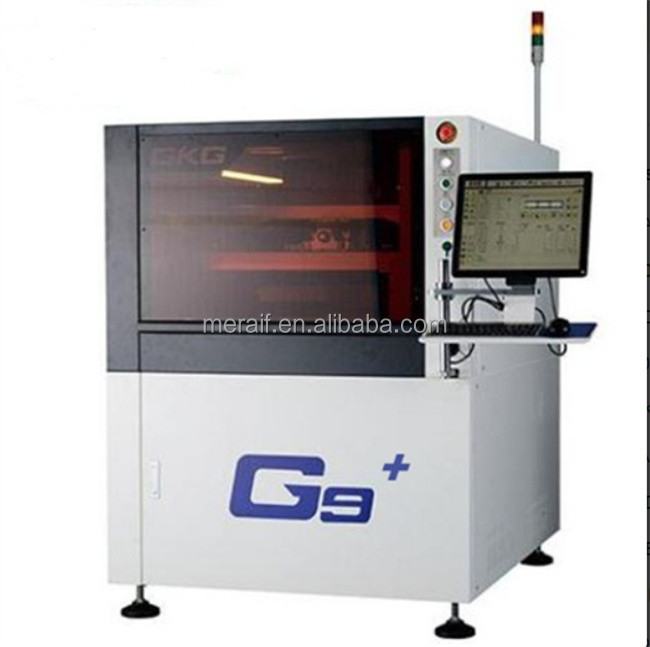

GKG G9+ printer SMT Stencil Printer Full Automatic Solder paste Printer
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Automatic Solder paste Printer printer :
GKG G9+ SMT Stencil Printer, Fully Automatic tin paste printing machine is a high-end model for SMT high-end application, which can satisfy the printing process requirements of 03015,0.25 pitch, high precision and high speed.
G9+ is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Automatic Solder paste Printer Specification :
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~450mm x340mm;
PCB thickness: 0.4mm ~ 6mm
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode:03015,01005, 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.25mm; support BGA, CSP packaging,
min. ball 0.25um;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.
1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.
Item | Parameter | |
Repeat Position Accuracy | ±0.01mm(Test data and method are available) | |
Printing Accuracy | ±0.018mm(Test data and method are available) | |
Printing Speed / Cycle Time | <7.5s (Exclude Printing & Cleaning) | |
Products Changeover | <5Min | |
Screen Stencil Size/Min-Max | 470mm X340mm-737mm X737mm | |
Screen Stencil Size/Thickness | 20mm ~ 40mm | |
PCB Size/Min-Max/Thickness | 50X50mm-450X340mm/0.4~6mm | |
PCB Warpage Ratio | <1%(Based on diagonal length) | |
Bottom of Board Size | 15mm(Standard configuration) | |
Edge of Board Size | 2.5mm | |
Conveyor Height | 900±40mm | |
Conveyor Direction | Left-Right; Right-Left; Left-Left; Right-Right | |
Conveyor Speed | 100-1500mm/sec Programmable control | |
Board Positioning | Support System | Magnetic pin/Side support block /Flexible automatic pin(optional) |
Clamping System | Elastic side clamping/Vacuum nozzle /Extension-type Z-direction table setting | |
Print head | Two indepandent Motorised printheads | |
Squeegee Speed | 10~200mm/sec | |
Squeegee Pressure | 0.5-10kg software control(closed-loop pressure feedback), pressure value visible | |
Squeegee Angle | 60°(Standard )/55°/45° | |
Squeegee Type | Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized. | |
Steel Mesh Separation Speed | 0.1~20mm/sec Programmable Control | |
Cleaning Method | Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods) | |
Table Adjustment Range | X:±3mm; Y:±7mm θ:±2° | |
Type of Fiducial Point | Standard geometry shape of fiducial point, bonding pad / Stencil hole | |
Camera System | Single digital camera for upward/downward vision system | |
Air Pressure | 4~6Kg/cm2 | |
Air Consumption | Approx 0.07m3 /min | |
Control Method | PC Control | |
Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW | |
Machine Dimensions/Weight | Depends on exactly model | |
Operation Temperature | -20°C ~ +45°C | |
Operation Humidity | 30%~60% |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup

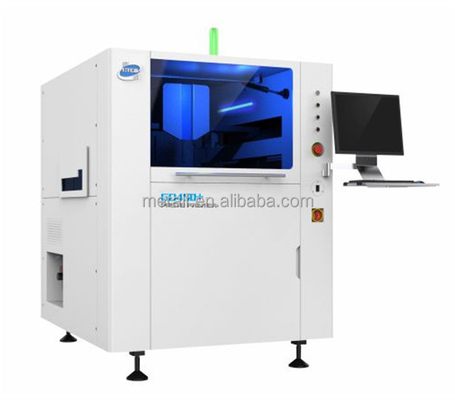

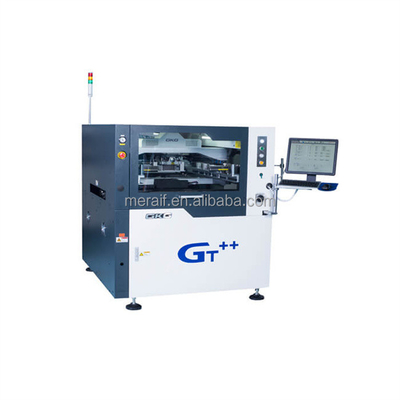

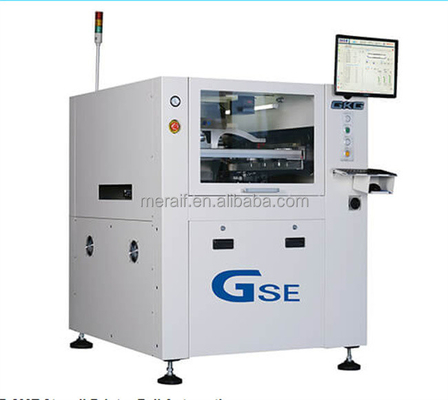

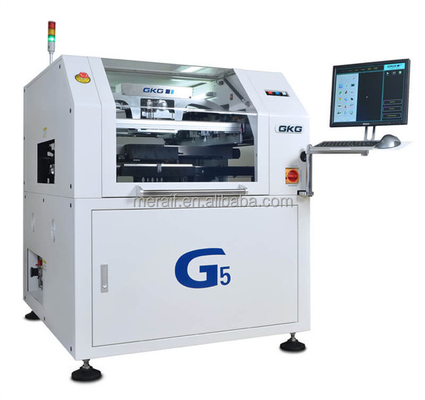

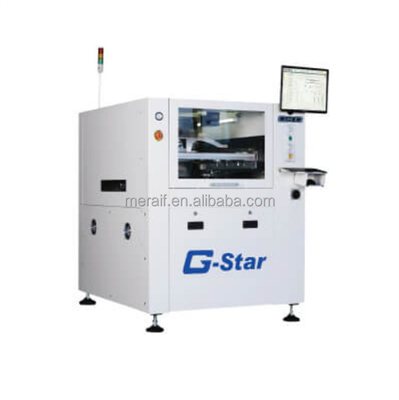

Automatic Solder paste Printer picture show
