Product Details:

Place of Origin: Japan
Brand Name: SAKI AOI MACHINE
Model Number: BF-10D AOI Machine

Payment & Shipping Terms:

Price: $1,500.00 - $15,000.00/pieces
Packaging Details: BF-10D AOI Machine packing with vacuum wooden case
Supply Ability: 1000000 Piece/Pieces per Month BF-10D AOI Machine
Detailed Product Description
Condition: Used Weight (KG): 100
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: BF-10D AOI Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Board Size:: 50*50 - 250*330mm Board Warp:: +/-2mm, 79mils
Camera:: Line Color CCD Camera Board Thickness:: 0.6 - 2.5mm
Resolution:: 18μm Lighting:: LED Lighting System
Power Consumption:: 400VA Port: Shenzhen

Saki Machine Smt SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

 Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 0

BF-10D AOI Machine  Specification:





Model

SAKI 2D AOI BF-10D

Resolution

10μm

Board Size

Single Lane 50×60 - 460×330mm, 2×2.4 - 18×13in. Dual Lane 50×60 - 250×330mm, 2×2.4 - 10×13in.

Board Thickness

0.6 - 3.2mm, 24 - 126mils

Board Warp

+/-2mm, 80mils

PCB Clearance

Top: 40mm, 1.57in. Bottom: 40mm, 1.57in

Rotated  Component Support

Available for 0 - 359°rotation (unit of 1°)

Inspection Categories

Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Absence of solder, Insuffficient solder, Lifted lead, Lifted Chip, and fillet defect. Each defect name can be changed freely by system function.

Tact Time*1 *2

Single Lane Approx. 10sec (250x330mm 1 PCB)

Dual Lane Approx. 16sec (250x330mm 2 PCB)

Image Scanning Time*1

Approx. 5.5sec. (250x330mm)

Camera (Image Processing)

Line color CCD camera

Lighting

LED lighting system

Transfer Conveyor Method

flat belt  transfer

Transfer Conveyor Height

900+/-20mm, 36+/-0.8in

Transfer Conveyor Width Adjustment

Manual

Operating System

Windows XP English Version

Optional System

BF-Editor / BF-RP1 / BF-Monitor / BF-View

Optional

2D Barcode Recognition, Journal Printer, Automatic Transfer Conveyor Width Adjustment

Electric Power Requirement

Single Phase ~100 - 120V / 200 - 240V +/-10%, 50/60Hz, 800VA

Air Requirement

0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM

Usage Environment

15°C(59F) - 30°C(86F) / 15 - 80% RH

(Non-condensing)

Noise Level

58.3dB

Dimensions*3 W x D x H

850 × 1360 × 1380mm, 33.5 × 53.5 × 54.3in

Weight

Approx. 450kg, 992lbs

*1 If PCB size is smaller than 250x330mm, Image scannig time will be shorter than this values.

*2 Including Image Scanning Time.

*3 Monitor and keyboard arm is not included.

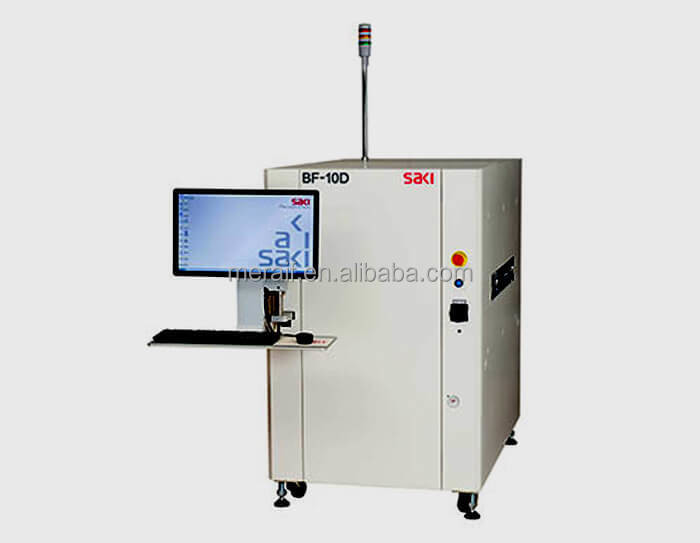

The SAKI AOI BF-10D, M-size system was developed especially for high speed, inline, dual-lane production, employing Saki's new high-speed color camera and a new gantry frame designed for high speed motion of the camera. New image processing tools take advantage of multi-core CPU processing. The BF-10D can easily keep up with production takt times as short as 8 seconds. Saki's BF-10D handles dual-lane high speed production lines using only one head. Whether the two lanes have the same or different board configurations, they can be inspected simultaneously in one pass, making inspection very fast. When the same items are run in both lanes, the inspection programming data can be shared.

BF 10D Dual Liane In-line High Resolution and High Speed AOI In-line 2D AOI
Scanning time for M size (330x250mm) PCB is only 4 seconds, equivalent to single lane
Enable to inspect different items in the respective lane
BF-10D can deal with dual-lane high speed production lines only with one head. BF-10D can inspect different items by the front lane and the back lane respectively or same items in the both lanes. When same items are run at both lanes , same inspection programming data can be shared. BF-10D also provide 10um high resolution inspection with telecentric lens optical system by combining various algorithms and lighting types in simple construction with one axis operation, multiple data handling capability such as programming data change by barcode reading and data output to customers' data servers

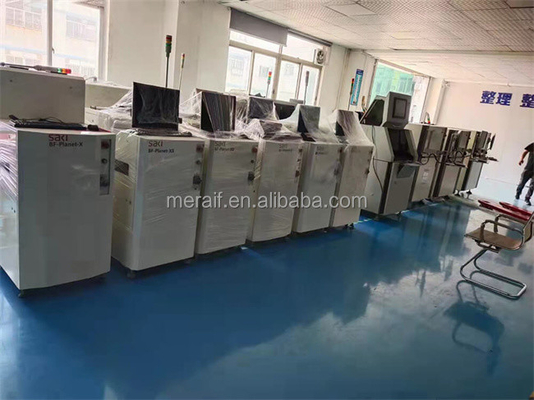

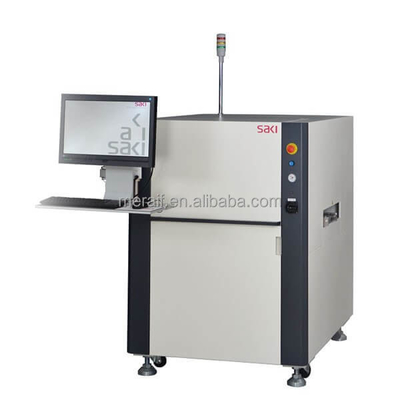

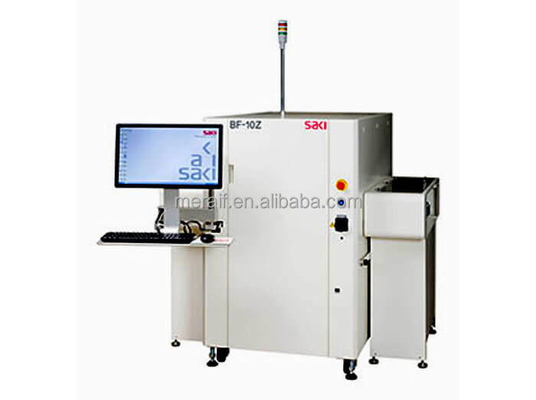

BF-10D AOI Machine  picture show

Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 1Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 2Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 3Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 4Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 5Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 6Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 7Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 8

Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 9Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 10Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 11

Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 12

Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 13Saki Machine SMT SAKI AOI BF-10D AOI Machine SAKI AOI MACHINE 14
