High Precision SMT Koh Young AOI PCB Automated Optical Inspection Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | Used | Weight (KG): | 100 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | PCB Automated Optical Inspection |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Board Size:: | 50*50 - 250*330mm | Board Warp:: | +/-2mm, 79mils |
| Camera:: | Line Color CCD Camera | Board Thickness:: | 0.6 - 2.5mm |
| Resolution:: | 18μm | Lighting:: | LED Lighting System |
| Power Consumption:: | 400VA | Port: | Shenzhen |
High Precision SMT Koh Young Zenith AOI PCB Automated Optical Inspection Machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
PCB Automated Optical Inspection Specification:
Koh Young Zenith AOI
Optimized specification model for various production environments
Fully automatic AOI with Koh Young’s patented 3D inspection technology
Removes shadow problems with 8 way projection – even in the Z axis
Real time PCB warp compensation
Reveals a wide range of defects such as scewed or tombstoned components
Enables Industry 4.0 with the Smart Factory
Watch the video to see how the Koh Young inspection concept can help you optimize your electronic production.
The World's Best-selling & First Full 3D Automated Optical Inspection Eliminates all the sources of defects using full 3D measuring inspection equipment skills- Removes shadow problems utilizing 8-way projection- Realizes perfect 3D solder joint inspection- Provides accurate inspection data with real-time PCB warp compensation· Full 3D data-based process optimization solution: Realization of industry 4.0 smart factory- Process information DB and real-time remote monitoring- Inspection program management automation & efficiency· Optimized specification model for a variety of production environment
High-precision weld seam measurement algorithm provided by KOH YOUNG technology for artificial intelligence
8 MPixel camera / 15μm resolution
Z resolution: 1μm
The smallest component size: 300μm (0402)
4 projectors with the same capacity as 8 projectors
PCB size: 490 x 510 mm
PCB weight: 4kg
3D inspection speed: 27.14cm²/sec
Camera reads 1D and 2D barcodes
Offline programming station
Defect inspection station
service station
KSMART server solution with software suite
Integrated calibration check wedge
Check for foreign objects on the PCB

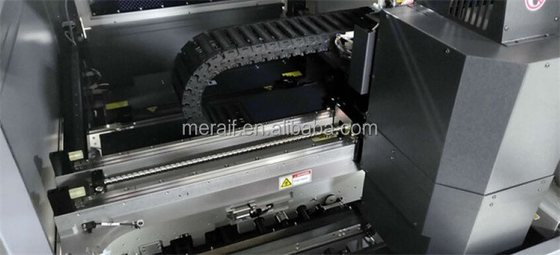

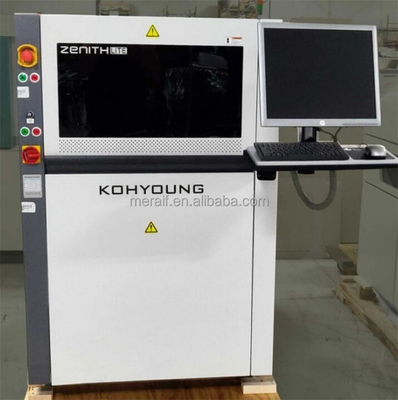

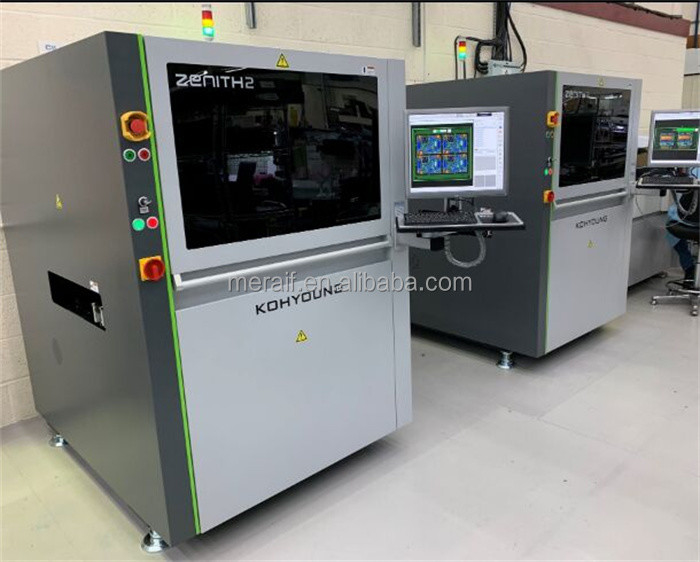

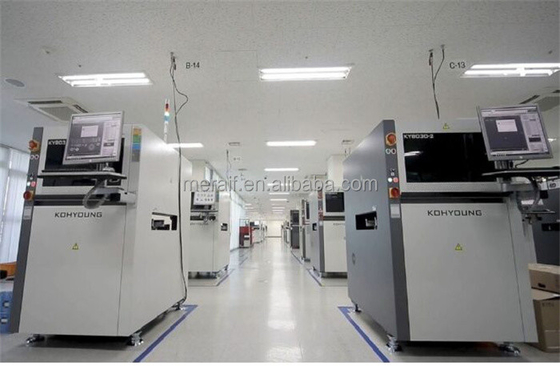

PCB Automated Optical Inspection picture show
